FDN D250-10-60-LN12

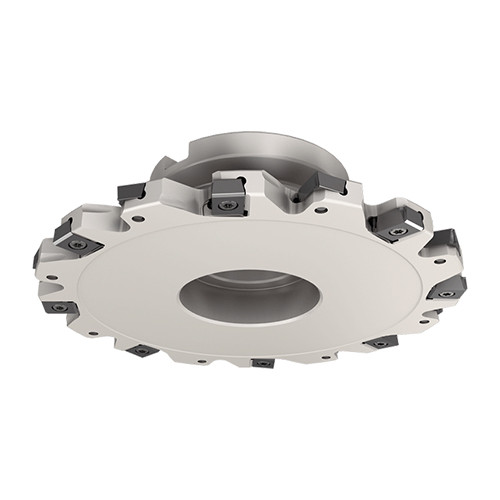

Full slot cutters carrying LNET 12 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT).
Price: Log in For Price

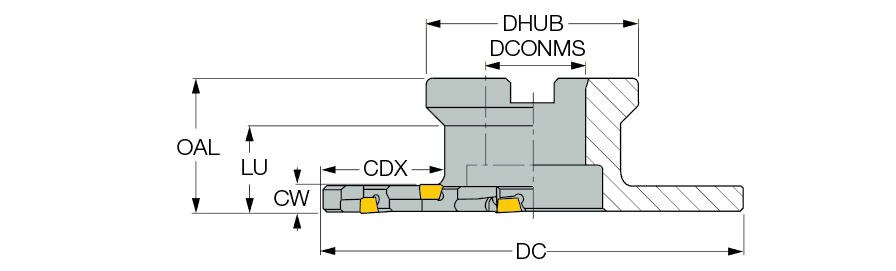

| Cutting Diameter (DC) | 250 mm | Overall Length (OAL) | 63 mm |
| Cutting Item Count (CICT) | 26 | Master Insert Identification (MIID) | LNET 125504-TN |
| Peripheral Effective Cutting Edge Count (ZEFP) | 13 | Application | | Bottom Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 56.5 mm | Arbor Style | C |
| Hub Diameter (DHUB) | 132 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 12 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 10 mm | Body Material | Steel |
| Usable Length (LU) | 62.5 mm | Unit | M |
| Flute Count (NOF) | 26 |
Product Features
| Family Description | Full slot cutters carrying LNET 12 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT). | FamilyName | FDN-LN12 |

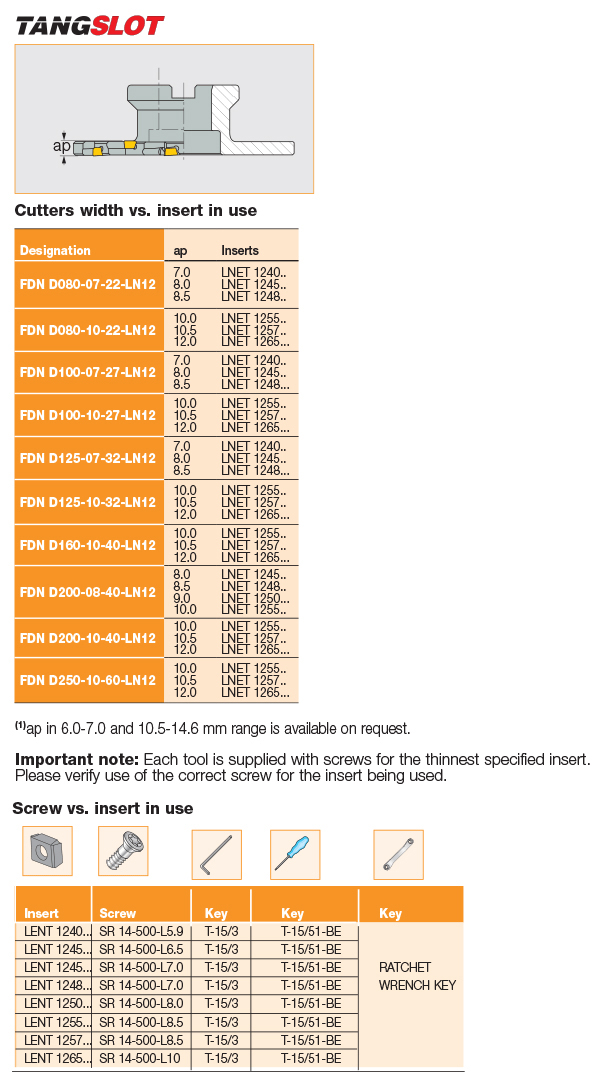

| Remarks | Slot width depends on the selected insert width. Each tool is supplied with screws for the thinnest specified insert. Verify use of correct screw for the insert being used. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
6.7230
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
FDN-LN12
BrandName
Iscar
