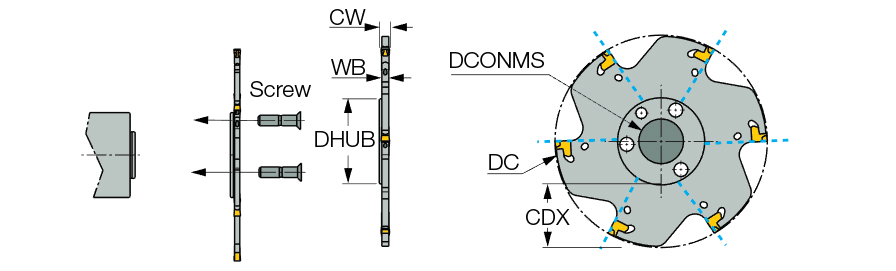

| Cutting Diameter (DC) | 4.921″ | Flute Count (NOF) | 8 |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | TAG N3C |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Application | | Side Slotting | Slitting | |
| Cutting Depth Maximum (CDX) | 1.339″ | Rotational Speed Maximum (RPMX) | 3820 rpm |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.165″ | Body Material | Steel |
| Cutting Width (CW) | 0.118″ | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Maximum (CWX) | 0.12″ | Unit | I |
| Cutting Width Minimum (CWN) | 0.118″ |
Product Features
| Family Description | Slitting cutters with coolant channels carrying TANG-GRIP inserts | FamilyName | TGSF-JHP |
| Remarks | DC varies slightly due to different chip formers having different lengths For precision operations it is recommended to verify diameter offset before machining | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7363
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TGSF-JHP
BrandName
Iscar
