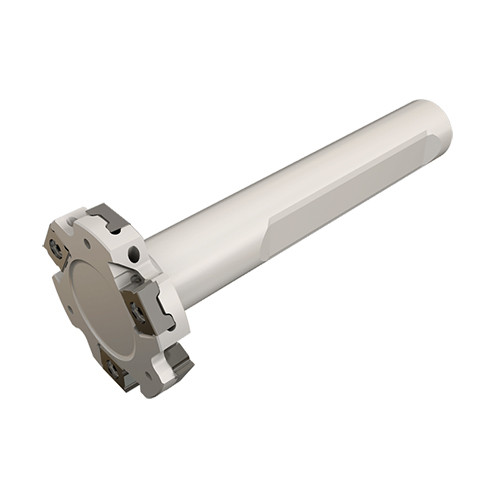

ETS D1.50-.250-W.625-LN08
MINI-TANGSLOT, Grooving and slitting cutters, carrying tangentially clamped inserts with 4 cutting edges.
Price: Log in For Price

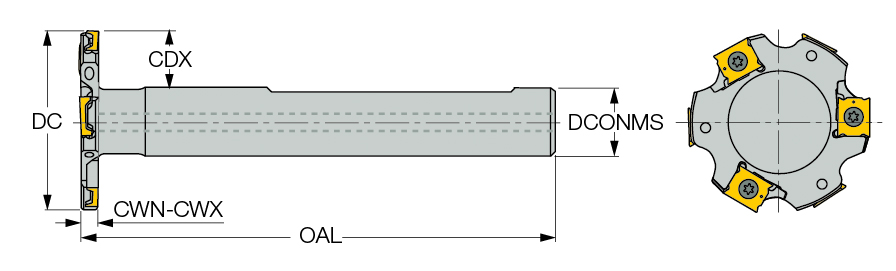

| Cutting Diameter (DC) | 1-1/2″ | Tool Type | Double-sided slotting cutters |
| Flute Count (NOF) | 6 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Cutting Item Count (CICT) | 6 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Functional Length (LF) | 3.047″ |
| Overall Length (OAL) | 4″ | Master Insert Identification (MIID) | LNET 083504-TN-N |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Application | | Side Slotting | Slitting | T Slotting | | Unit | I |
| Measurement Type | Inch |
Product Features
| Family Description | MINI-TANGSLOT, Grooving and slitting cutters, carrying tangentially clamped inserts with 4 cutting edges. | FamilyName | ETS-LN08 |
| Remarks | Adjustable overhang design | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4982
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
ETS-LN08
BrandName
Iscar
