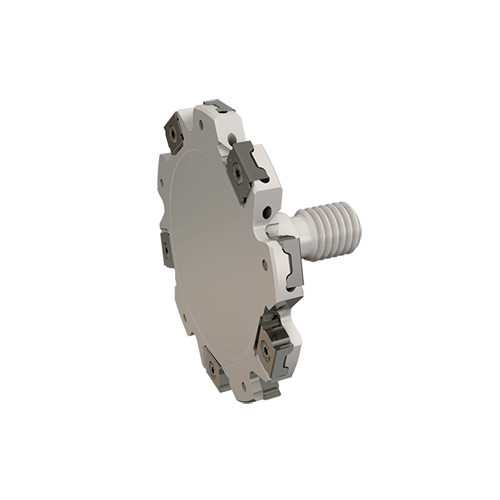

ETS D063-06-LN08-M12
MINI-TANGSLOT, Grooving and slitting cutters with FLEXFIT threaded adaptation, carrying tangentially clamped inserts with 4 cutting edges.
Price: Log in For Price

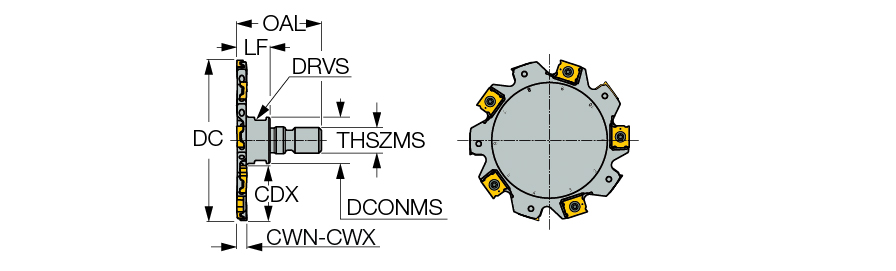

| Cutting Diameter (DC) | 2.48″ | Tool Type | Double-sided slotting cutters |
| Flute Count (NOF) | 10 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Cutting Item Count (CICT) | 10 |
| Connection Diameter Machine Side (DCONMS) | 0.827″ | Master Insert Identification (MIID) | LNET 083504-TN-N |
| Overall Length (OAL) | 1.378″ | Connection Code Machine Side (CCMS) | FLEXFIT |
| Application | | Side Slotting | Slitting | T Slotting | | Unit | I |
| Measurement Type | Inch |
Product Features
| Family Description | MINI-TANGSLOT, Grooving and slitting cutters with FLEXFIT threaded adaptation, carrying tangentially clamped inserts with 4 cutting edges. | FamilyName | ETS-LN08-M |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5269
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
ETS-LN08-M
BrandName
Iscar
