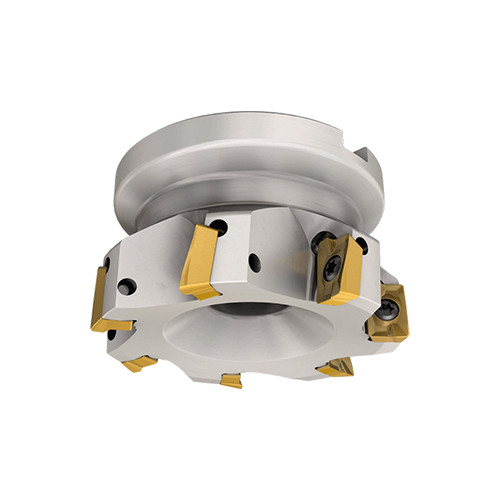

HM90 F90A D2.00-5-.75
HELI2000, 90° face mills carrying HM90 ADKT 1505... inserts.
Price: Log in For Price

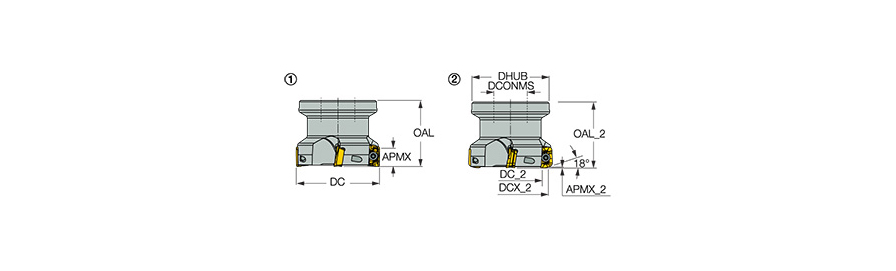

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | ADKT 1505PDTR |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.56″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.56″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 1.89″ | Tool Type | 90° Facemills |
| Arbor Style | A | Unit | I |
Product Features
| Family Description | HELI2000, 90° face mills carrying HM90 ADKT 1505... inserts. | FamilyName | HM90 F90A-15 |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For user guide, see pages For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0670
Name
Indexable Face Mills
FamilyName
HM90 F90A-15
BrandName
Iscar
