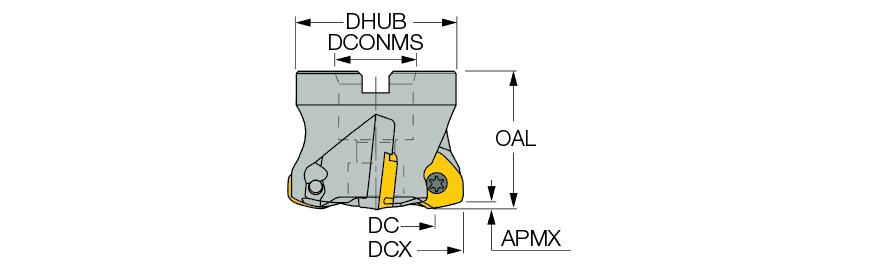

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | FF WOMT0602 |
| Cutting Diameter (DC) | 1.44″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.047″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.57″ | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Hub Diameter (DHUB) | 1.921″ | Tool Type | Fast Feed Face mill |
| Arbor Style | A | Unit | I |
Product Features
| Family Description | FEEDMILL, fast feed face mills using FF WOMT... inserts. Can run at very high feed rates of up to .059 IPT at small DOC, resulting in very high metal removal rates. | FamilyName | FF FW |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0229
Name
Indexable Face Mills
FamilyName
FF FW
BrandName
Iscar
