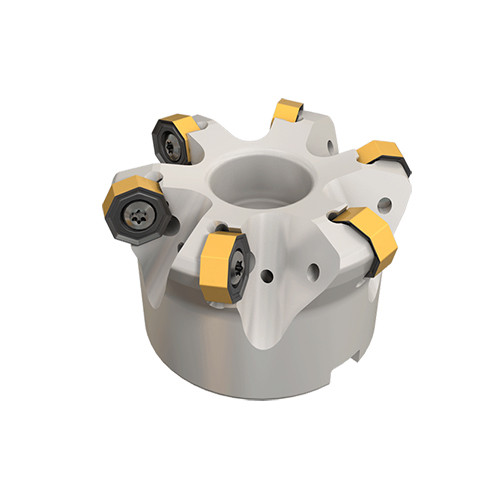

FF SOF 8/16 D3.0-07-1.00R
Fast feed milling cutter, carrying square or octagonal double-sided inserts with 8/16 cutting edges.
Price: Log in For Price

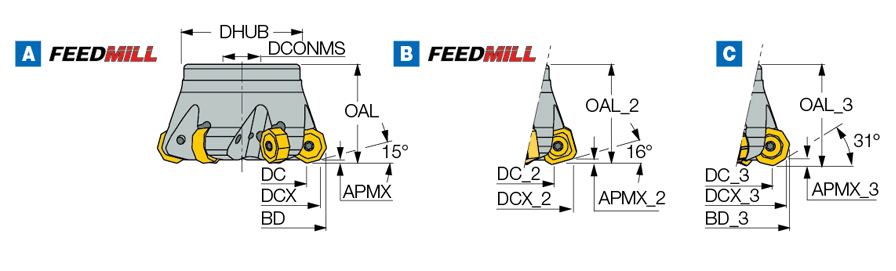

| Cutting Diameter (DC/DCX) | 3.211″ | Master Insert Identification (MIID) | ONHU 050500-N-HP |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 3.211″ | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.106″ | Application | | Facing | Fast Feed Milling | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.768″ | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Hub Diameter (DHUB) | 2.22″ | Tool Type | Fast Feed Face mill |
| Arbor Style | B | Unit | I |
Product Features
| Family Description | Fast feed milling cutter, carrying square or octagonal double-sided inserts with 8/16 cutting edges. | FamilyName | FF SOF |
| Remarks | A- with ONMU 0505... insert B- with S845 SNMU 1305... insert C- with OXMT 0507R08-FF insert Use only Torx Plus keys For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.1429
Name
Indexable Face Mills
FamilyName
FF SOF
BrandName
Iscar
