MF FWX D1.50-05-0.50-05
HELIDO UPFEED H600 LINE - Moderate feed face mills carrying double-sided inserts with 6 cutting edges.
Price: Log in For Price
| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | H600 WXCU 05T312T |
| Cutting Diameter (DC) | 1.128″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.079″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-1/4″ | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Hub Diameter (DHUB) | 1.378″ | Tool Type | Fast Feed Face mill |
| Arbor Style | A | Unit | I |
Product Features
| Family Description | HELIDO UPFEED H600 LINE - Moderate feed face mills carrying double-sided inserts with 6 cutting edges. | FamilyName | MF FWX |

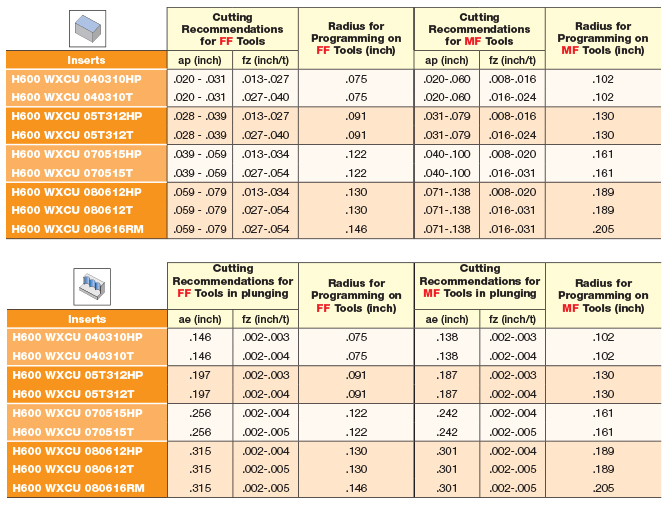

| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5137
Name
Indexable Face Mills
FamilyName
MF FWX
BrandName
Iscar
