FFQ4 D2.50-08-1.00-09
Fast feed face mills carrying single-sided Inserts with 4 cutting edges.
Price: Log in For Price

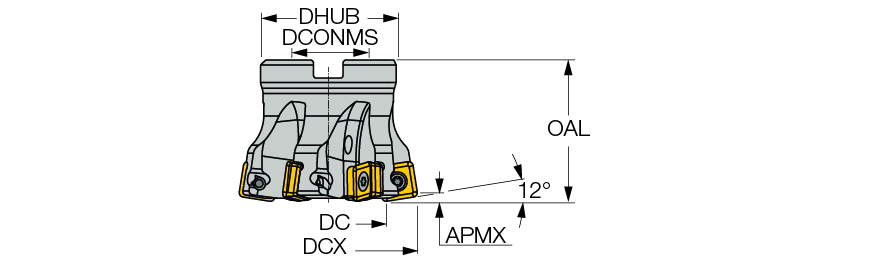

| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | FFQ4 SOMT 090412T |
| Cutting Diameter (DC) | 1.937″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.047″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.85″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Hub Diameter (DHUB) | 2.252″ | Unit | I |
| Arbor Style | A |
Product Features
| Family Description | Fast feed face mills carrying single-sided Inserts with 4 cutting edges. | FamilyName | FFQ4 D-09 |

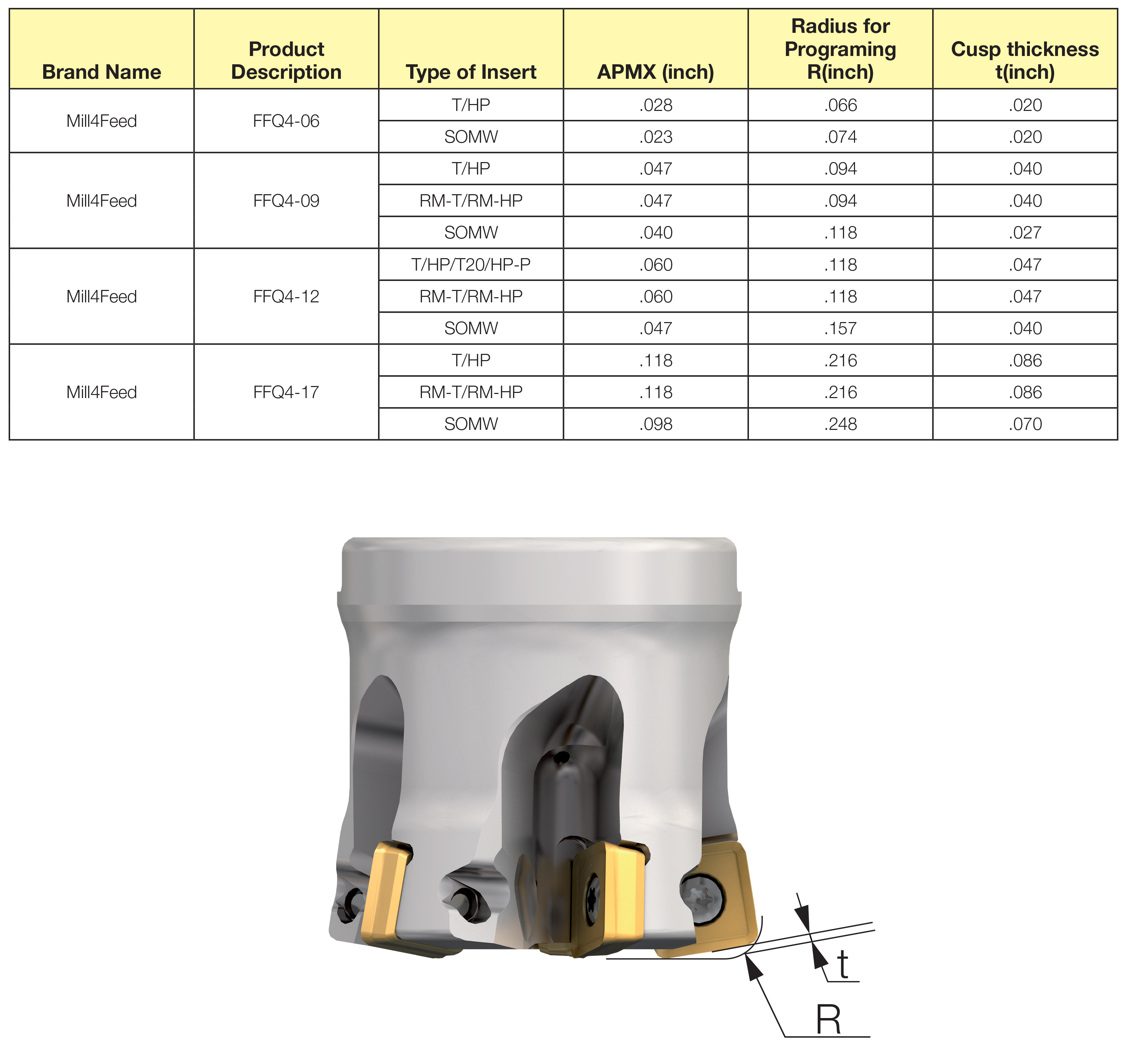

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .098, for insert SOMW .118 When mounting insert SOMW, APMX=.039 For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.0437
Name
Indexable Face Mills
FamilyName
FFQ4 D-09
BrandName
Iscar
