E10M STFPR-11X

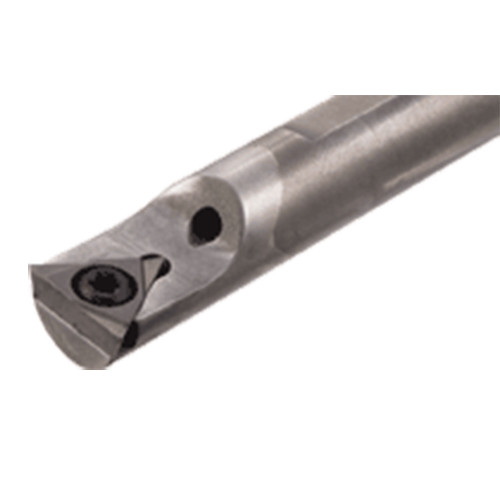

Boring bars with steel (A) or carbide (E) shanks Carrying triangular TPGX 11° clearance inserts for small diameters.
Price: Log in For Price

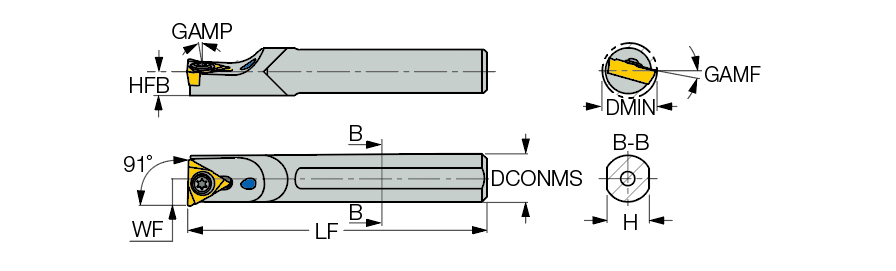

| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 150 mm | Rake Angle Axial (GAMP) | 3 Degrees |
| Shank Height (H) | 9 mm | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 6 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPGX 1103 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 11.4 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Boring bars with steel (A) or carbide (E) shanks Carrying triangular TPGX 11° clearance inserts for small diameters. | FamilyName | A/E-STFPR-X |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1530
Name
Indexable Internal Turning Tools
FamilyName
A/E-STFPR-X
BrandName
Iscar
