A-PDUNR 20-4

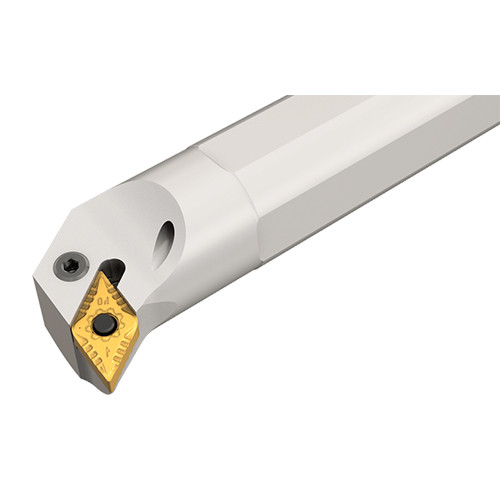

Steel shank with coolant hole lever-lock boring bars for 55° negative rhombic inserts.
Price: Log in For Price

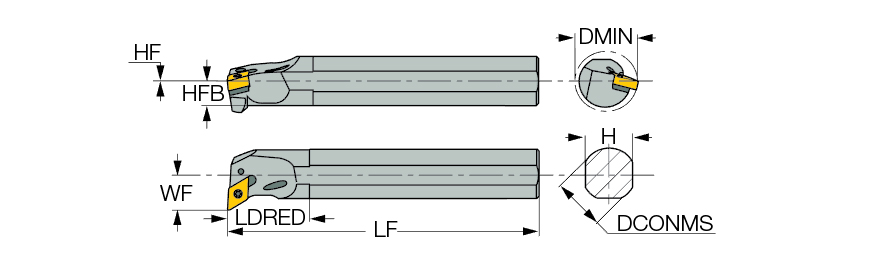

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 12″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 1.874″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 29″ | Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 1″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DNMG 4.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 42″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Product Features
| Family Description | Steel shank with coolant hole lever-lock boring bars for 55° negative rhombic inserts. | FamilyName | A-PDUNR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
3.4855
Name
Indexable Internal Turning Tools
FamilyName
A-PDUNR/L
BrandName
Iscar
