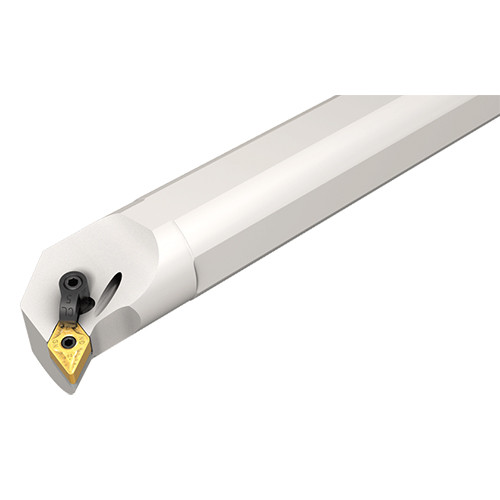

A-MDUNR 12-3
Clamp-lock boring bars with coolant holes for negative 55° inserts.
Price: Log in For Price

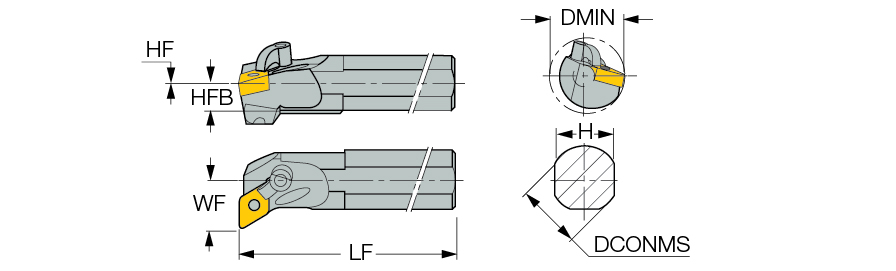

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Overall Length (OAL) | 8″ | Rake Angle Axial (GAMP) | -14 Degrees |
| Reduced Body Diameter Length (LDRED) | 1.38″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 0.63″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DNMG 332-GN | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.16″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Clamp-lock boring bars with coolant holes for negative 55° inserts. | FamilyName | A-MDUNR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.8598
Name
Indexable Internal Turning Tools
FamilyName
A-MDUNR/L
BrandName
Iscar
