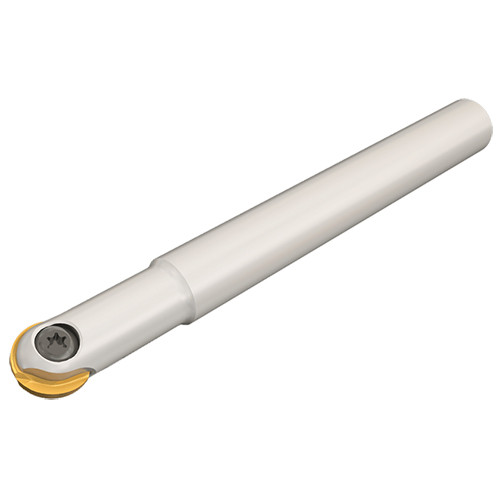

HCM D.50-B-L6.5-C.75
Ball nose multifunction endmills D=.500″ (BALLPLUS). Each tool can carry various milling insert geometries.
Price: Log in For Price

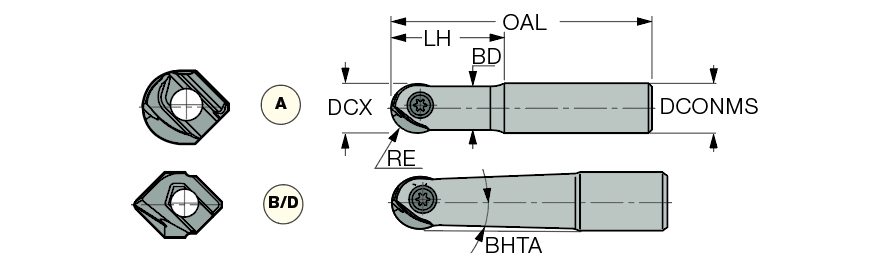

| Cutting Diameter (DC/DCX) | 1/2″ | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 1/2″ | Torque (TQ) | 53 lbfxin |
| Cutting Item Count (CICT) | 1 | Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 0.33″ | Body Half Taper Angle (BHTA) | 5 Degrees |
| Overall Length (OAL) | 6-1/2″ | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Front Type | B |
| Application | | Countersinking | Drill Mill | Profiling | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HBR D.50-QF | Body Material | Steel |
| Head Length (LH) | 2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Ball nose endmills | Unit | I |
| Usable Length (LU) | 2″ |
Product Features
| Family Description | Ball nose multifunction endmills D=.500″ (BALLPLUS). Each tool can carry various milling insert geometries. | FamilyName | HCM D.50 |
| Remarks | The dimensions are for HBR inserts For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.9237
Name
Indexable End Mills
FamilyName
HCM D.50
BrandName
Iscar
