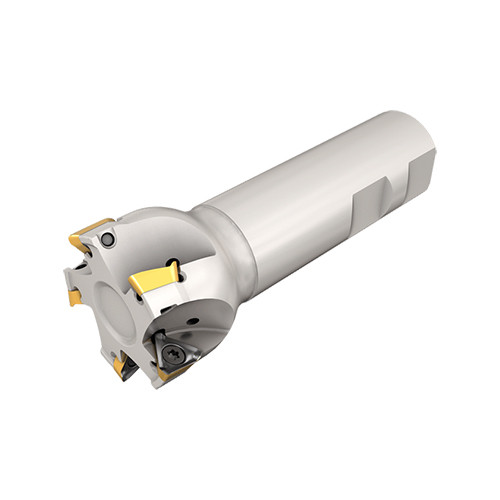

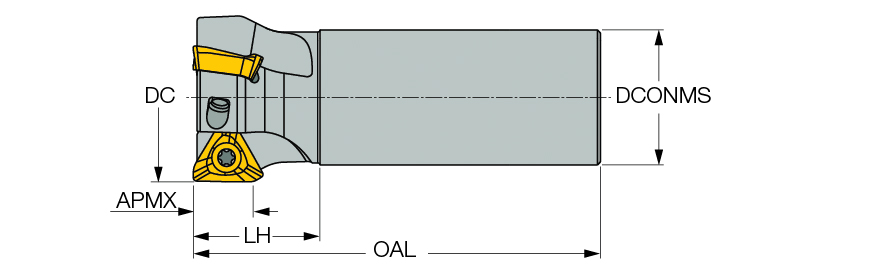

HM390 ETP D1.00-3-C1.0-B
| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 7.87″ |
| Cutting Diameter (DC) | 1″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 0.315″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 7.87″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.9 Degrees | Measurement Type | Inch |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | HM390 TPKT 100304PDR | Unit | I |
| Head Length (LH) | 1.57″ |
Product Features
| Family Description | 90° endmills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges. | FamilyName | HM390 ETP-10 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.7946
Name
Indexable End Mills
FamilyName
HM390 ETP-10
BrandName
Iscar
Harmonized code
8466100130
