T490 ELN D25-3-M12

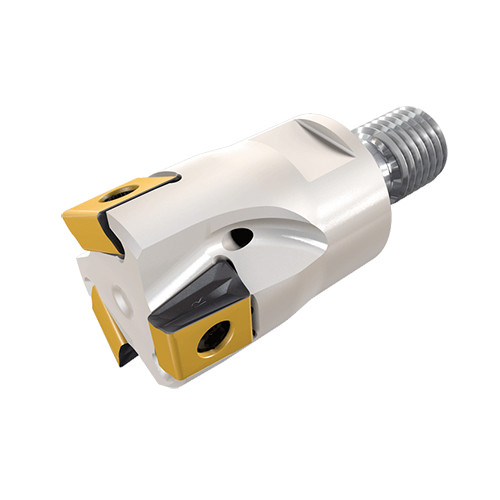

HELITANG, 90° endmills with a FLEXFIT threaded adaptation carrying tangentially clamped inserts with 4 helical cutting edges.
Price: Log in For Price

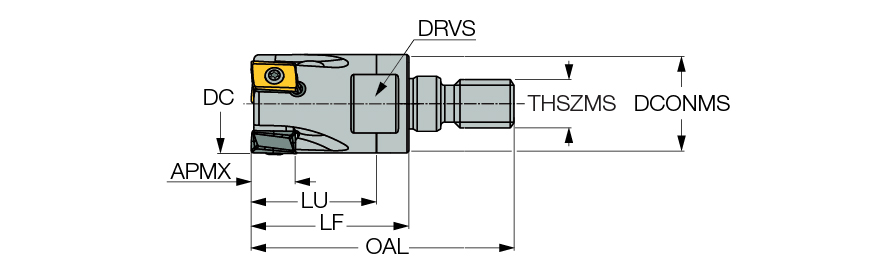

| Cutting Diameter (DC/DCX) | 25 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter (DC) | 25 mm | Drive Size (DRVS) | 17 mm |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 21 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | T490 LNMT 0804PNR | Body Material | Steel |
| Functional Length (LF) | 28 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Tool Type | 90° indexable endmills | Unit | M |
Product Features
| Family Description | HELITANG, 90° endmills with a FLEXFIT threaded adaptation carrying tangentially clamped inserts with 4 helical cutting edges. | FamilyName | T490 ELN-M |

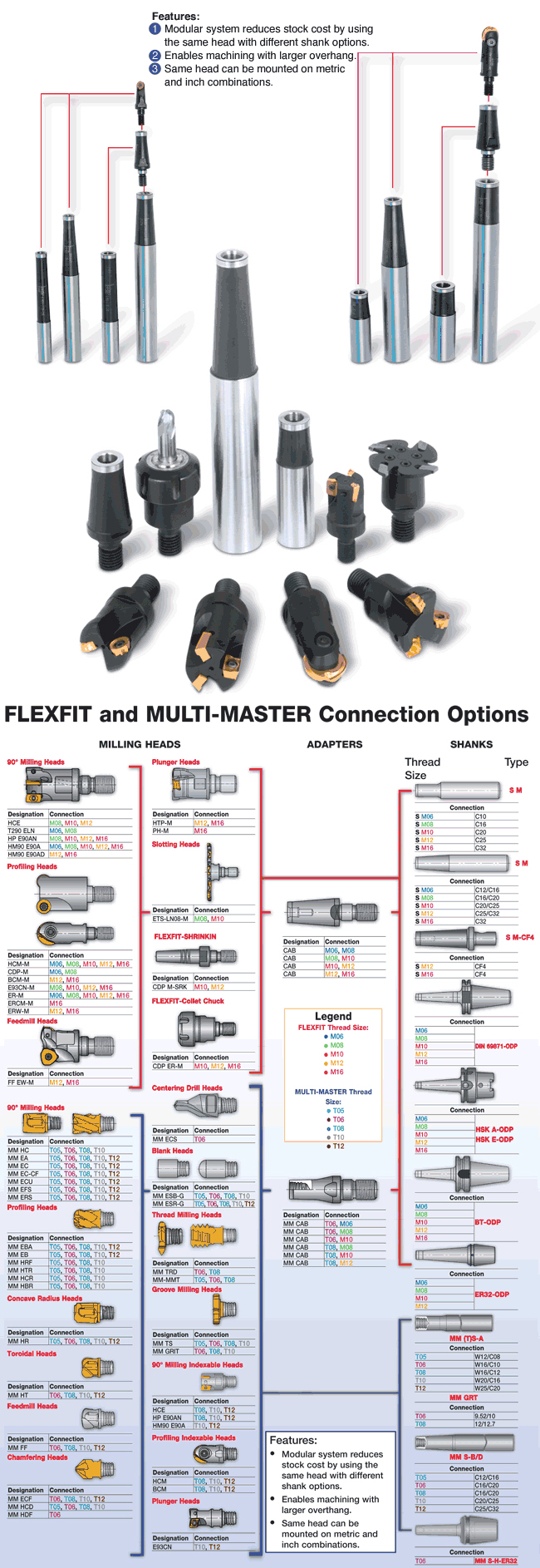

| Remarks | For adaptation, click on More Info When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1240
Name
Indexable End Mills
FamilyName
T490 ELN-M
BrandName
Iscar
