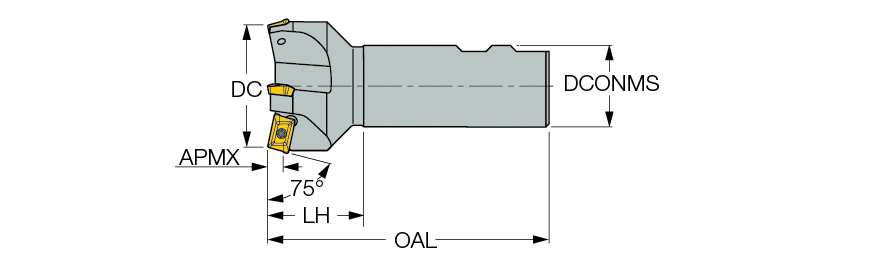

| Cutting Diameter (DC/DCX) | 1-1/4″ | Functional Length (LF) | 2.734″ |
| Cutting Diameter (DC) | 1-1/4″ | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 0.15″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3-3/4″ | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Measurement Type | Inch |
| Application | | Facing | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | APCT 100302R-HM | Unit | I |
| Head Length (LH) | 1.18″ |
Product Features

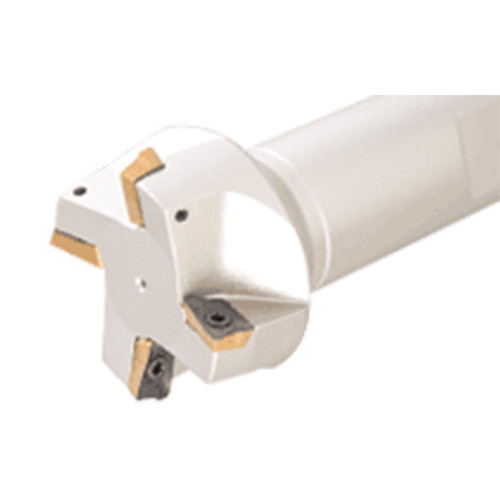

| Family Description | HELIMILL, 75° endmills with AP..-1003... inserts. | FamilyName | E75A |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7341
Name
Indexable End Mills
FamilyName
E75A
BrandName
Iscar
