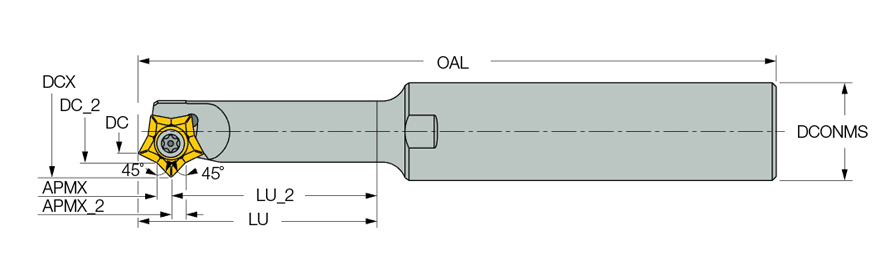

| Cutting Diameter (DC/DCX) | 0.655″ | Usable Length (LU) | 1.157″ |
| Cutting Diameter (DC) | 0.449″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Depth of Cut Maximum (APMX) | 0.059″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4-1/2″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Cutting Diameter Maximum (DCX) | 0.655″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Unit | I |
| Master Insert Identification (MIID) | PNMT 0602 |
Product Features

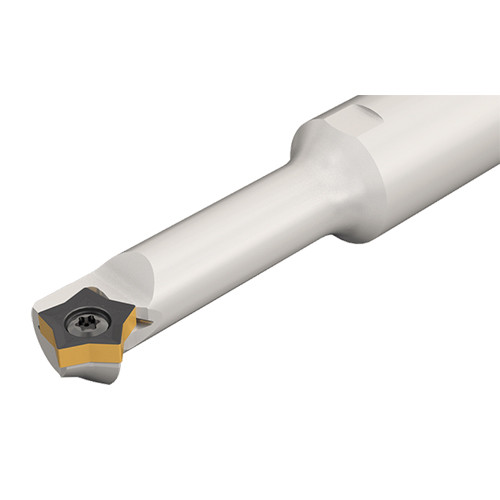

| Family Description | Upper and bottom chamfering endmills carrying pentagonal inserts with 5 front and 5 back cutting edges. | FamilyName | CH45-PN06 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4101
Name
Indexable End Mills
FamilyName
CH45-PN06
BrandName
Iscar
