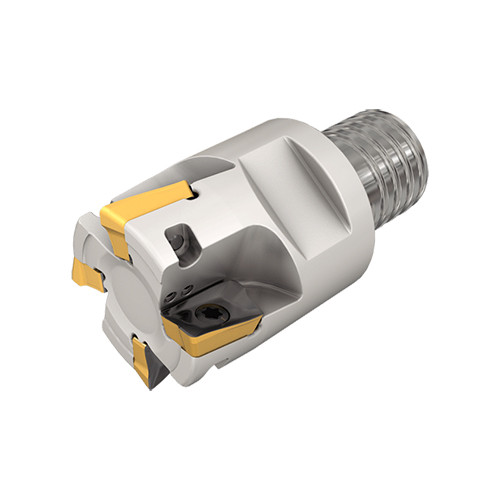

HM90 E90A D1.00-4MMT15JHP
90° JHP endmills with a MULTI-MASTER threaded adaptation carrying HELI2000 and HELIMILL Inserts
Price: Log in For Price

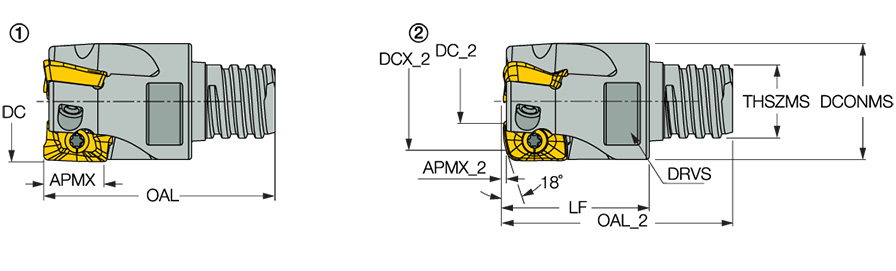

| Cutting Diameter (DC/DCX) | 1″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 1″ | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Item Count (CICT) | 4 | Drive Size (DRVS) | 0.8″ |
| Depth of Cut Maximum (APMX) | 0.39″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 1.85″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.18″ | Body Material | Steel |
| Master Insert Identification (MIID) | APKT 1003PDR-HM | Unit | I |
| Functional Length (LF) | 1.18″ |
Product Features
| Family Description | 90° JHP endmills with a MULTI-MASTER threaded adaptation carrying HELI2000 and HELIMILL Inserts | FamilyName | HM90 E90A-MM-10-JHP |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert Do not apply lubricant to the MULTI-MASTER threaded connection For tightening torque click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3704
Name
Indexable End Mills
FamilyName
HM90 E90A-MM-10-JHP
BrandName
Iscar
