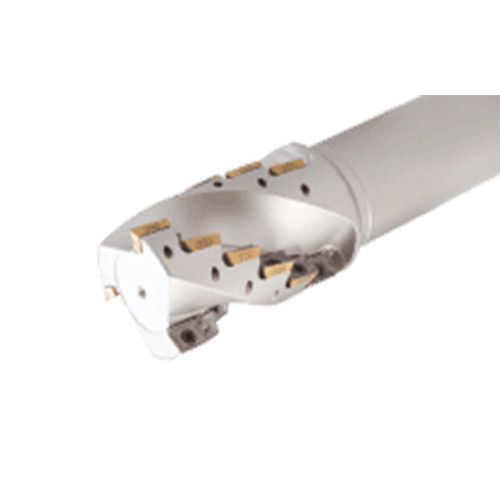

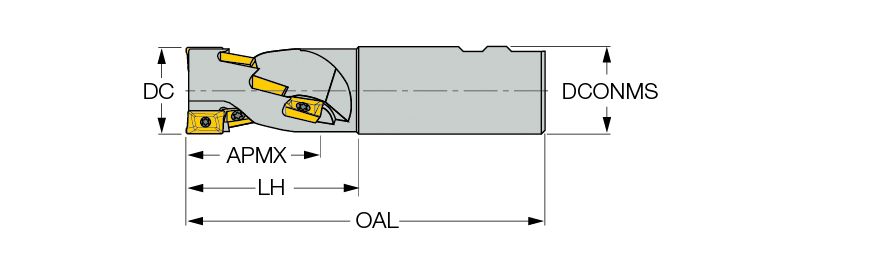

APK D1.25-1.75W1.25FE
| Application | | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.86″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 1-1/4″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | 90° Extended flute endmills |
| Flute Count (NOF) | 2 | Connection Code Machine Side (CCMS) | Weldon |
| Overall Length (OAL) | 4-1/2″ | Unit | I |
| Master Insert Identification (MIID) | APKT 1003PDR-HM |
Product Features
| Family Description | Extended flute endmills carrying HELIMILL APKT/R-10... inserts. | FamilyName | APK-FE |
| Remarks | For adaptation click on More Info. Inserts with large corner radii can only be mounted in the face position of the cutter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.3933
Name
Shell Mills
FamilyName
APK-FE
BrandName
Iscar
