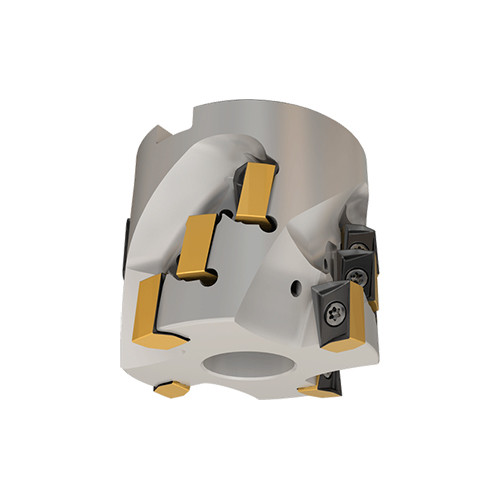

H490 SM D080-48-4-32-17C
Extended flute shell mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE).
Price: Log in For Price
| Application | | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |

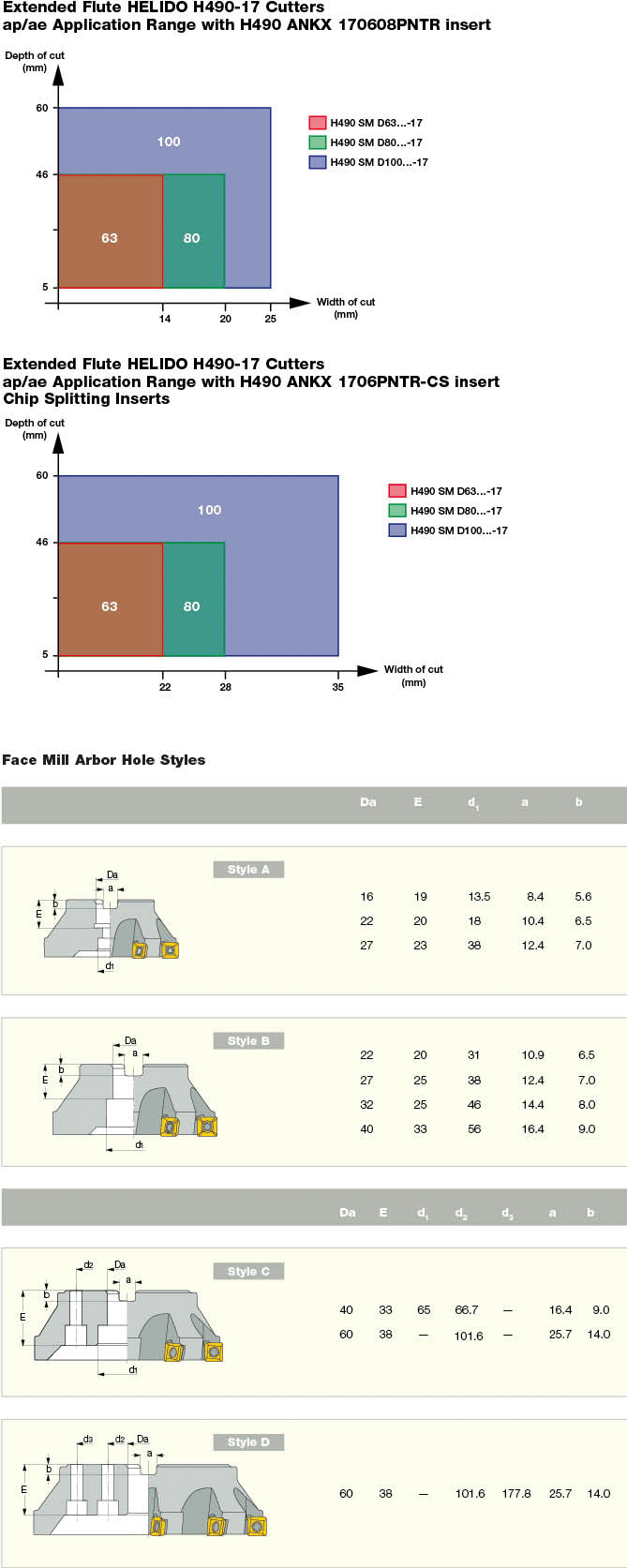

| Cutting Item Count (CICT) | 12 | Arbor Style | A |

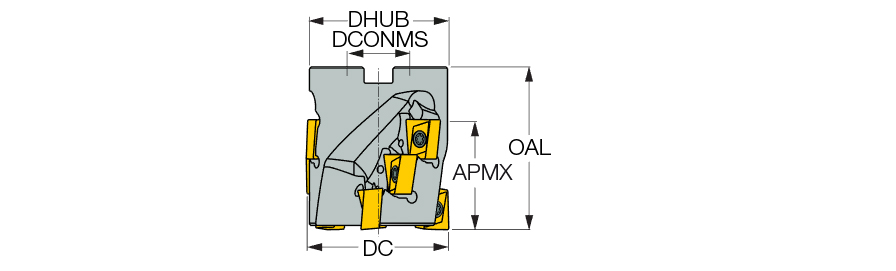

| Depth of Cut Maximum (APMX) | 46.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 80 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 76.4 mm | Body Material | Steel |
| Flute Count (NOF) | 4 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 70 mm | Unit | M |
| Master Insert Identification (MIID) | H490 ANKX 170604PNTR |
Product Features
| Family Description | Extended flute shell mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE). | FamilyName | H490 SM-17 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.9050
Name
Shell Mills
FamilyName
H490 SM-17
BrandName
Iscar
