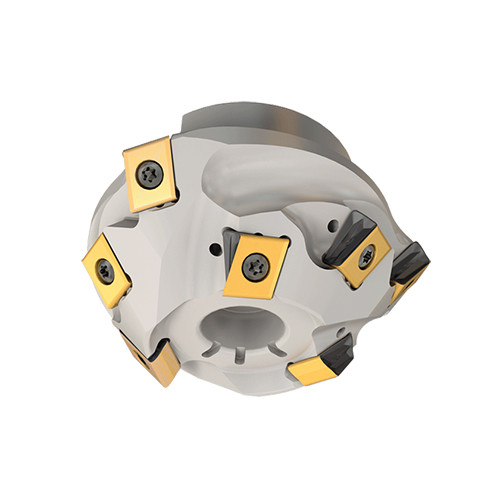

T475 SM-D050-34-3-27-13
Conical extended flute shell mills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, 13 mm long cutting edges.
Price: Log in For Price
| Application | | Facing | Slanted Shoulder & Chamfer | | Coolant Supply Property (CSP) | Coolant Thru |

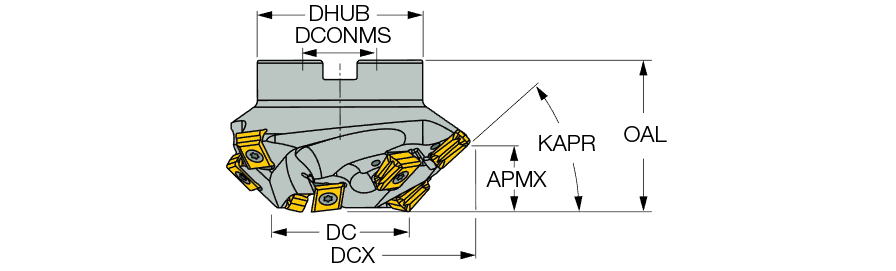

| Cutting Item Count (CICT) | 9 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 34.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 50 mm | Cutting Diameter Maximum (DCX) | 68.6 mm |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 55 mm | Tool Type | 45° Facemills |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR | Unit | M |
Product Features
| Family Description | Conical extended flute shell mills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, 13 mm long cutting edges. | FamilyName | T4..-SM Conical Shell Mills |

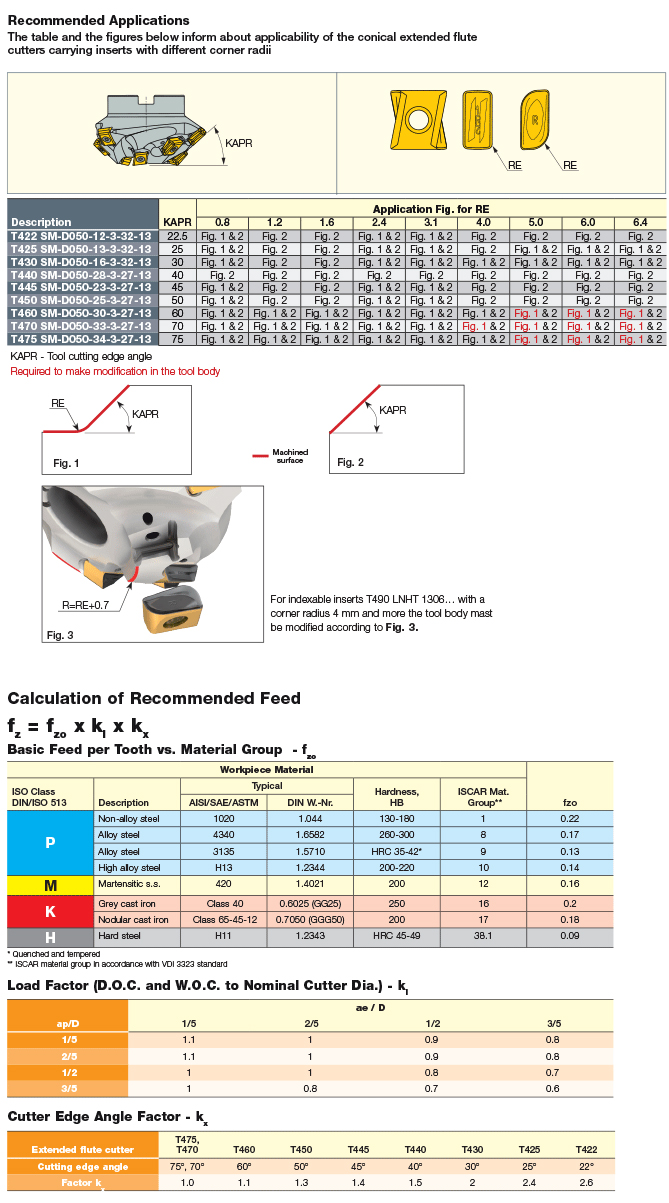

| Remarks | Note: RPM should be considered according to the recommended speed applied on the outer diameter obtained by the specific D.O.C. For calculating feed recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.9090
Name
Shell Mills
FamilyName
T4..-SM Conical Shell Mills
BrandName
Iscar
