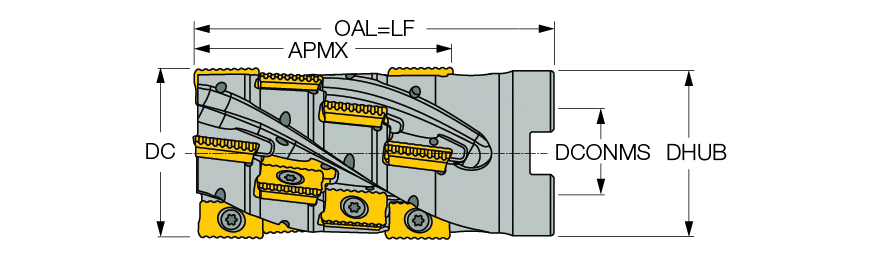

P290 SM D2.0-4-2.8-1.0-18
| Application | | Rampdown | Shouldering | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 16 | Arbor Style | A |
| Depth of Cut Maximum (APMX) | 2.8″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 2″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Flute Count (NOF) | 4 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 4.13″ | Hub Diameter (DHUB) | 1.97″ |
| Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW | Unit | I |
Product Features
| Family Description | Extended flute shell mills carrying .472 and .708″ long edged inserts. | FamilyName | P290 SM |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
2.5463
Name
Shell Mills
FamilyName
P290 SM
BrandName
Iscar
