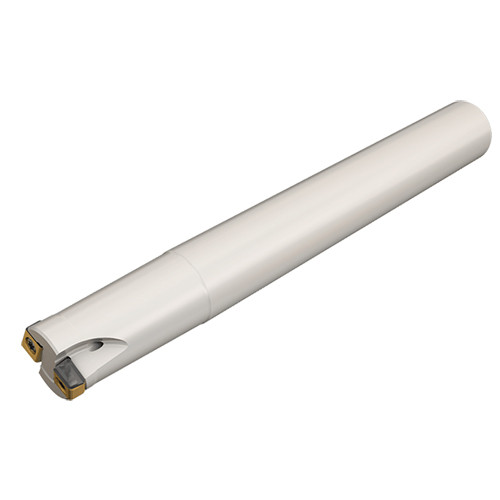

HTP D.75-2-L6.0-C.75-LN06
TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. .197″ side plunging capacity and .100″ maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.
Price: Log in For Price
| Application | | Shouldering | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 3/4″ | Head Length (LH) | 1-1/2″ |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.098″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Plungers cutters |
| Face Effective Cutting Edge Count (ZEFF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 6″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | I |
Product Features
| Family Description | TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. .197″ side plunging capacity and .100″ maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. | FamilyName | HTP-LN06 |
| Remarks | .197 side plunging capacity and .098 maximum face milling DOC For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8069
Name
Plunge Mills
FamilyName
HTP-LN06
BrandName
Iscar
