CHAMRING 170-WN32-09

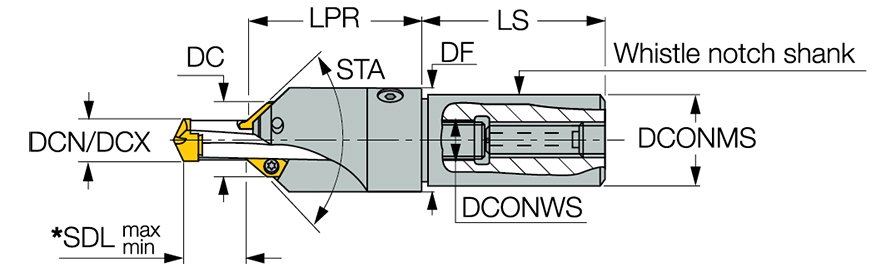

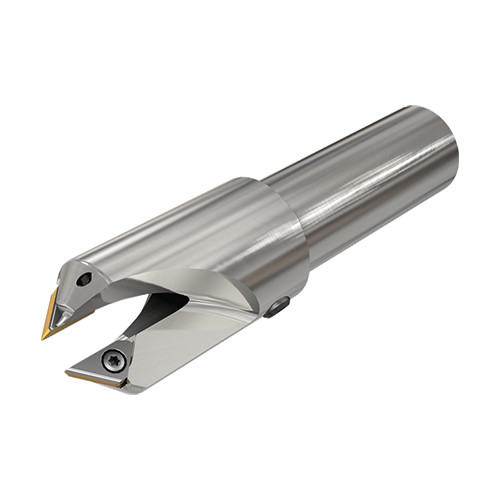

Drill Holders used with UNISUMOCHAM or UNICHAMDRILL drills for drilling and chamfering in one operation
Price: Log in For Price
| Cutting Diameter Maximum (DCX) | 17.9 mm | Measurement Type | Metric |
| Cutting Diameter Minimum (DCN) | 17 mm | PackSize | 1 |
| Master Insert Identification (MIID) | XCGT 09... | Remarks | For each SDLmin SDLmax pair, click on More Info in order to see which drill they refer to *SDLmin & SDLmax dimensions are based on the 45° chamfering insert It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used |
| Shank Length (LS) | 60 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Shank Size (SS) | 32 mm | Body Material | Steel |
| Application | | Chamfering | Drilling | | Unit | M |
| Tool Type | Chamfering drills |
Product Features
| Family Description | Drill Holders used with UNISUMOCHAM or UNICHAMDRILL drills for drilling and chamfering in one operation | COO | Israel |
| Remarks | For each SDLmin SDLmax pair, click on More Info in order to see which drill they refer to *SDLmin & SDLmax dimensions are based on the 45° chamfering insert It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used |
Shipping Info
Weight per item
0.8090
Related Documentation

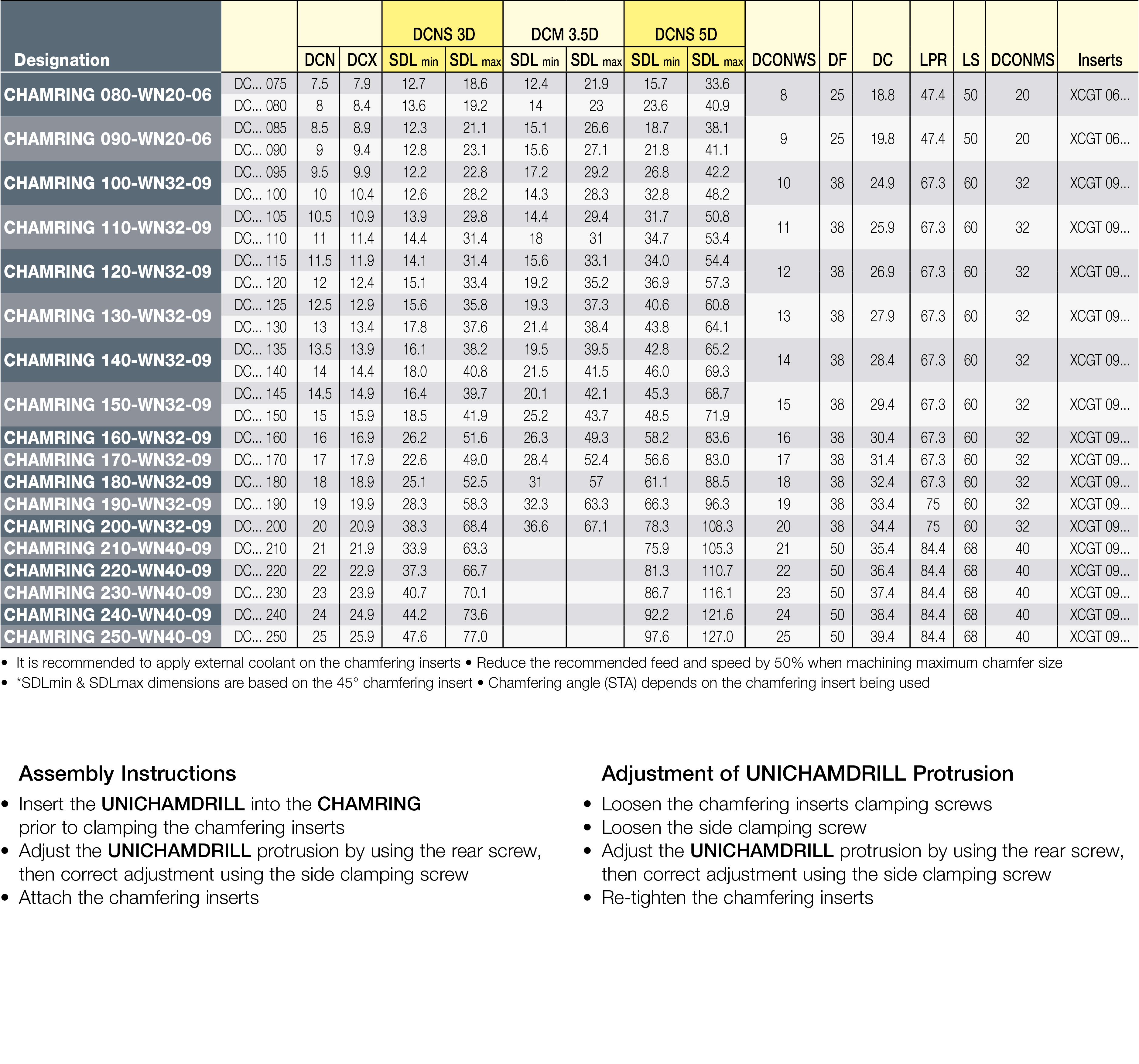

Assembly Instructions Insert the drill into the CHAMRING prior to clamping the chamfering inserts Adjust the drill protrusion by using the rear screw, then correct adjustment using the side clamping screw Attach the chamfering inserts Adjustment of drill Protrusion Loosen the chamfering inserts clamping screws Loosen the side clamping screw Adjust the drill protrusion by using the rear screw, then correct adjustment using the side clamping screw Re-tighten the chamfering inserts
