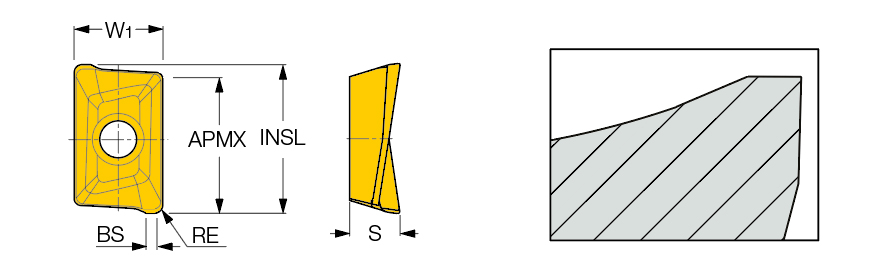

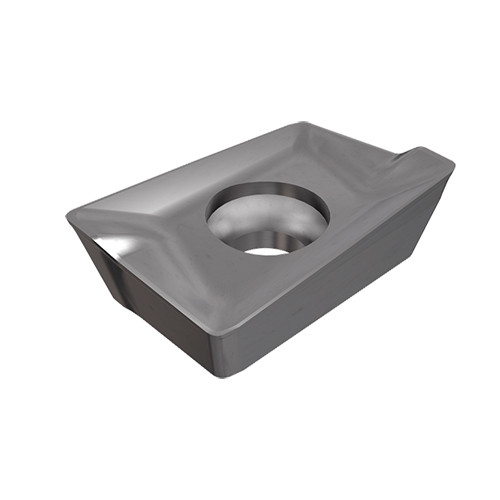

APKT 1003PDTR-RM IC910
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Bottom Shouldering | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.433″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0197″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.3858″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.264″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.137″ | Cutting Edge Effective Length (LE) | 0.386″ |
| Wiper Edge Length (BS) | 0.047″ | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | IC910 | Unit | I |
Product Features
| Family Description | Inserts with reinforced cutting edge (for machining under unfavorable conditions) | BrandName | Iscar |
| COO | Israel | ||
| FamilyName | APKT 1003.. RM |
Shipping Info
Weight per item
0.0068
Name
Milling Indexable Inserts
FamilyName
APKT 1003.. RM
BrandName
Iscar
