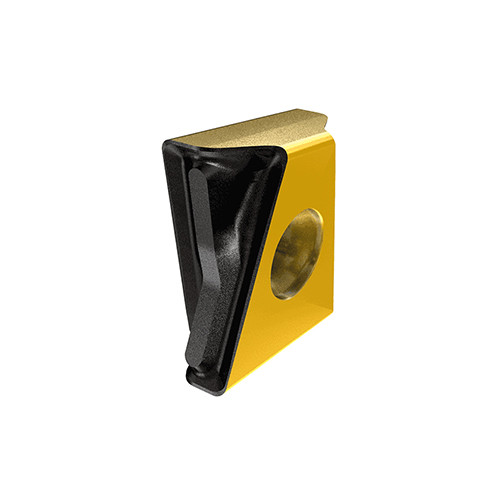

LNMT 1506PNTN-HT IC4100
TANGMILL, tangentially clamped inserts featuring 4 straight cutting edges 2 L.H. and 2 R.H.
Price: Log in For Price
| Applicable Material | | Cast Iron | Hard Materials | | Grade | IC4100 |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |

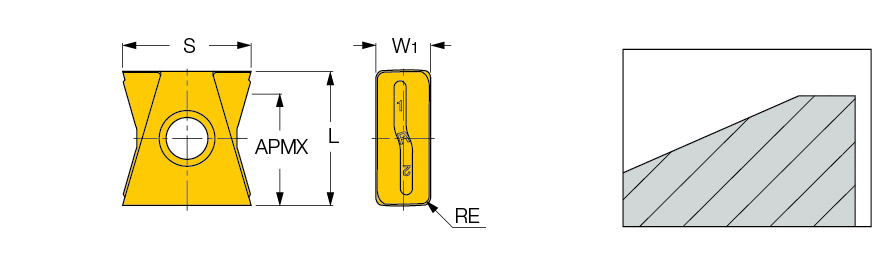

| Insert Length (INSL) | 0.591″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 0.551″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Width (W1) | 0.236″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.552″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | I |
Product Features
| Family Description | TANGMILL, tangentially clamped inserts featuring 4 straight cutting edges 2 L.H. and 2 R.H. | FamilyName | LNMT/LNHT 1506...-N HT |
| Remarks | For mismatch as a function of cutting diameter, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0284
Name
Milling Indexable Inserts
FamilyName
LNMT/LNHT 1506...-N HT
BrandName
Iscar
