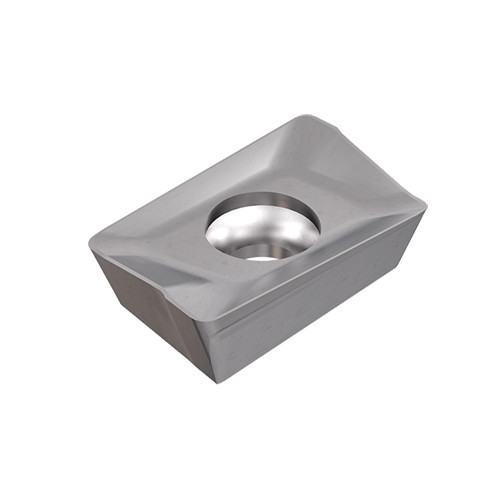

APCT 100302R-HM IC328
HELIMILL inserts with 2 helical precision ground cutting edges. Used for high accuracy finishing.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Tool Type | Single sided Inserts |

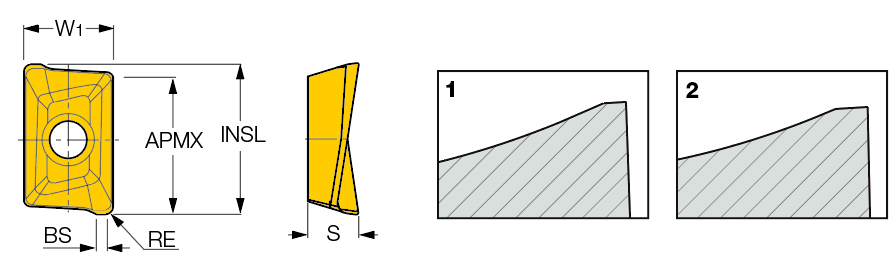

| Insert Length (INSL) | 0.431″ | Figure | 1 |
| Corner Radius (RE) | 0.0098″ | Minimum Feed per Tooth (fz(min)) | 0.0024 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.386″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.264″ | Cutting Edge Effective Length (LE) | 0.396″ |
| Insert Thickness (S) | 0.138″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 | Unit | I |
| Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
Product Features
| Family Description | HELIMILL inserts with 2 helical precision ground cutting edges. Used for high accuracy finishing. | BrandName | Iscar |
| COO | Israel | ||
| FamilyName | APCT 1003PDR-HM |
Shipping Info
Weight per item
0.0071
Name
Milling Indexable Inserts
FamilyName
APCT 1003PDR-HM
BrandName
Iscar
