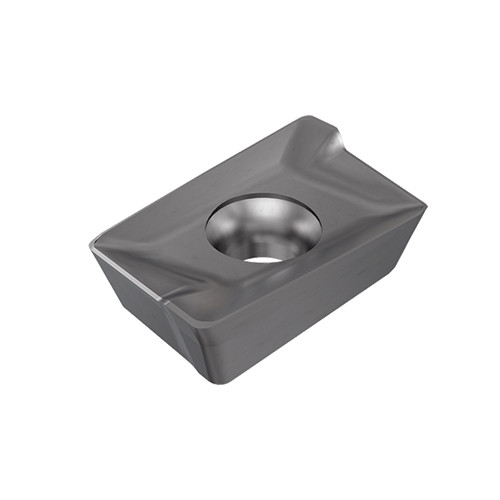

APKT 1003PDTR-76 IC950
HELIMILL Inserts with 2 helical cutting edges with ribs along the edge reducing heat transfer. Used for interrupted cuts.
Price: Log in For Price
| Applicable Material | | Steel | Cast Iron | | Cutting Edge Material | Carbide |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Tool Type | Single sided Inserts |

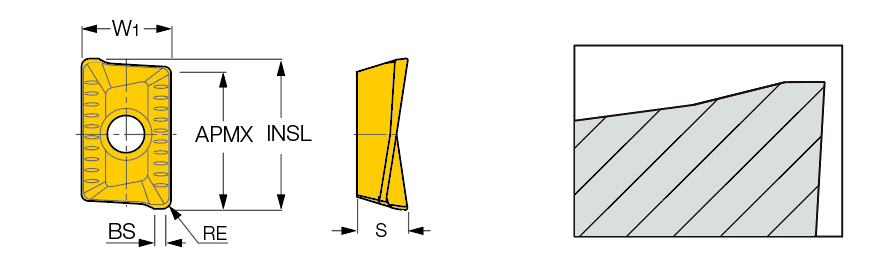

| Insert Length (INSL) | 0.433″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Corner Radius (RE) | 0.0197″ | Number of Cutting Edges | 2 |
| Depth of Cut Maximum (APMX) | 0.386″ | Cutting Edge Effective Length (LE) | 0.386″ |
| Insert Width (W1) | 0.264″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.137″ | Body Material | Carbide |
| Grade | IC950 | Unit | I |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
Product Features
| Family Description | HELIMILL Inserts with 2 helical cutting edges with ribs along the edge reducing heat transfer. Used for interrupted cuts. | BrandName | Iscar |
| COO | Israel | ||
| FamilyName | APKT 1003PDTR-76 |
Shipping Info
Weight per item
0.0066
Name
Milling Indexable Inserts
FamilyName
APKT 1003PDTR-76
BrandName
Iscar
