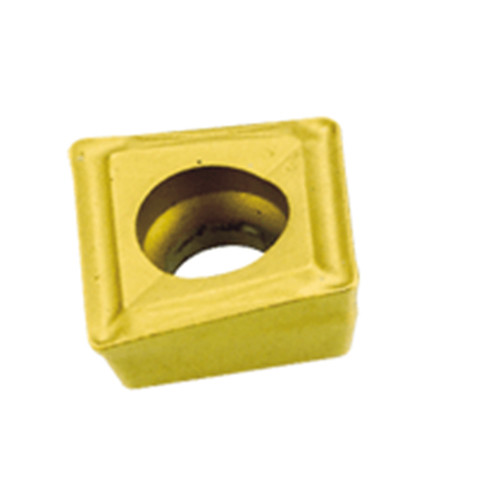

XOMT 060204-GF IC350
Square inserts for DR drills and A-SXFOR/L boring bars, for ductile materials.
Price: Log in For Price

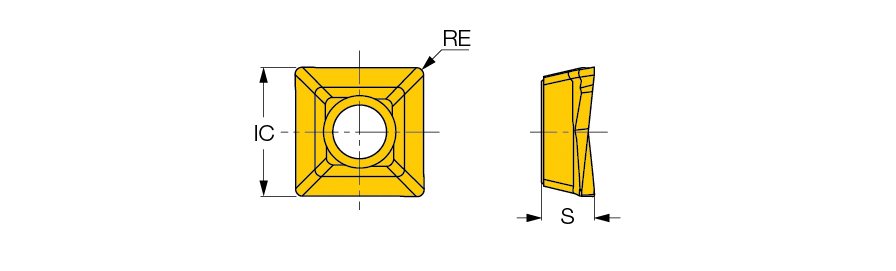

| Insert Thickness (S) | 0.101″ | Applicable Material | | Steel | Cast Iron | |
| Inscribed Circle Diameter (IC) | 0.236″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Indexable drilling inserts |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC350 | Body Material | Carbide |
| Application | | Drill Mill | Drilling | | Unit | I |
Product Features
| Family Description | Square inserts for DR drills and A-SXFOR/L boring bars, for ductile materials. | COO | Israel |
| Remarks | Two cutting edges Low cutting forces due to high cutting edges and positive angles |
Shipping Info
Weight per item
0.0042
