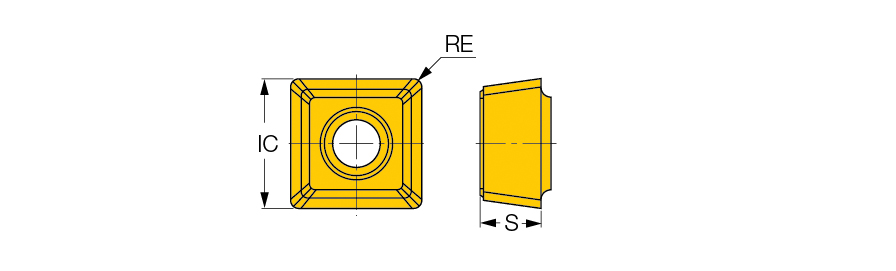

| Insert Thickness (S) | 0.126″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 0.244″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Indexable drilling inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
| Application | | Drill Mill | Drilling | | Unit | I |
Product Features

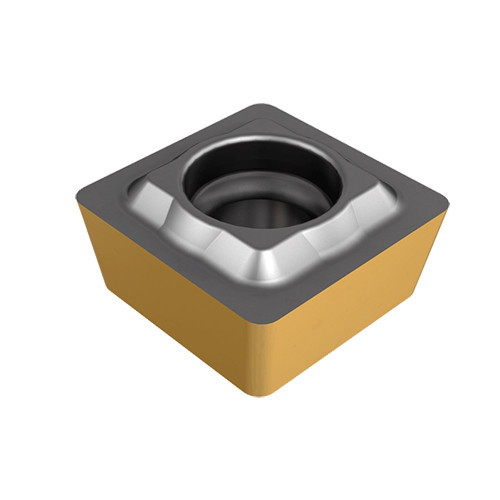

| Family Description | DR drill inserts for carbon steel and soft materials. | ||
| COO | Israel |
Shipping Info
Weight per item
0.0055
