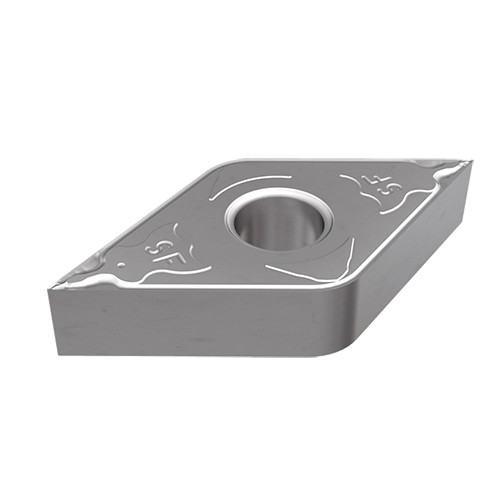

DNGG 430.5-SF IC907
Double-sided 55° rhombic inserts used for super finishing; controls chip flow at very low feeds and depths of cut. Excellent crater wear resistance.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.016″ |
| Insert Style | DNGG | Depth of Cut Maximum (APMX) | 0.098″ |

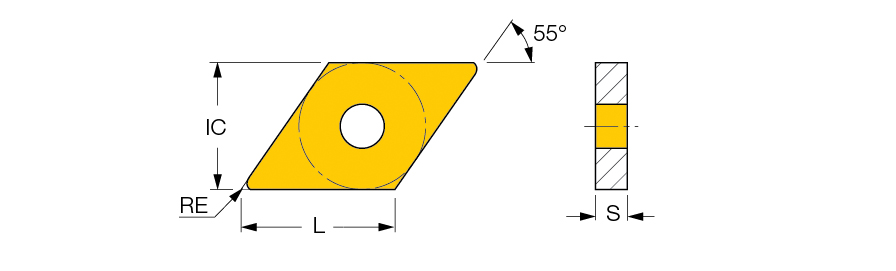

| Corner Radius (RE) | 0.0079″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Size | 150 | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.61″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | SF |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Unit | I |
| Grade | IC907 |
Product Features
| Family Description | Double-sided 55° rhombic inserts used for super finishing; controls chip flow at very low feeds and depths of cut. Excellent crater wear resistance. | FamilyName | DNMG/DNGG-SF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0328
Name
Turning Indexable Inserts
FamilyName
DNMG/DNGG-SF
BrandName
Iscar
