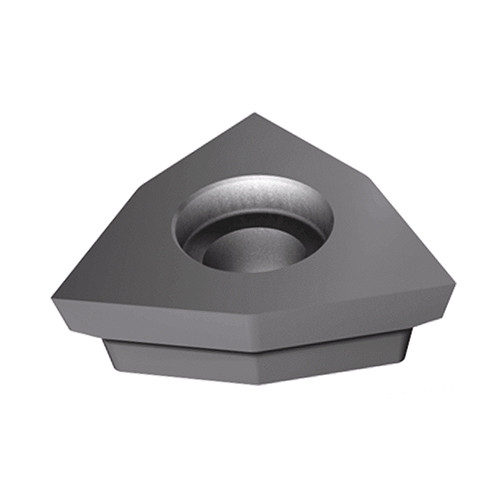

WPEB 060404N08 IC908
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Ext. Positive Trigon 45°Approa | Ext. Positive Trigon 60°Approa | Ext. Positive Trigon 90°Approa | | Min D.O.C. | 0.008″ |

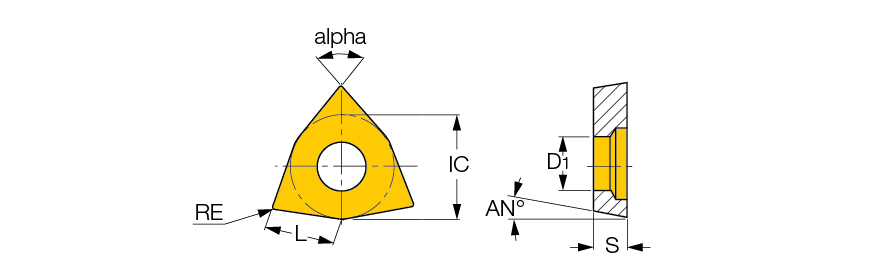

| Insert Style | WPEB | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Size | 060 | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Cutting Edge Length (L) | 0.236″ | Clearance Angle Major (AN) | 8 Degrees |
| Insert Thickness (S) | 0.157″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | W |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | I |
| Fixing Hole Diameter (D1) | 0.146″ |
Product Features
| Family Description | Precision positive 8° and 12° clearance, 80° and 84° trigon inserts with a flat rake for finishing applications on Swiss automatics. | FamilyName | WPEB |
| Remarks | For tolerances, see more info. | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.0108
Name
Turning Indexable Inserts
FamilyName
WPEB
BrandName
Iscar
Related Documentation
1.Single-sided, ground and polised for precision machining. 2.Without chipformer. 3.Eliminates built-up edge. 4.R-reinforced corner for right- hand turning. 5.L-reinforced corner for left- hand turning.
