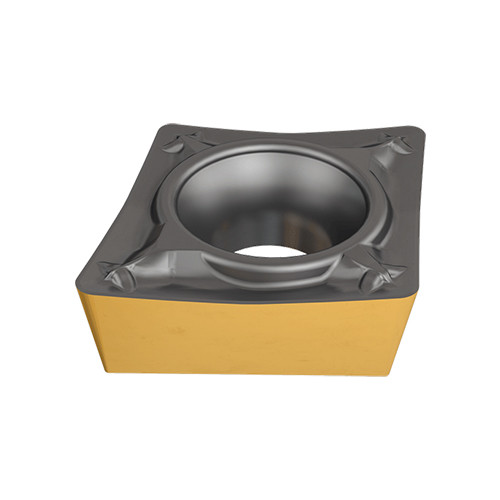

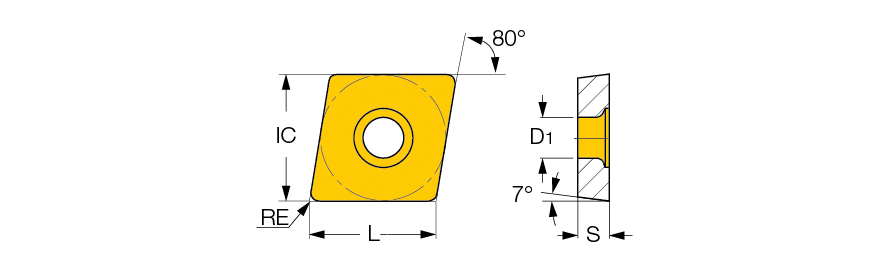

CCMT 2-1-M3P IC8250
| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 0.11″ |
| Application | | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Tool Type | Turn Positive Inserts |
| Insert Style | CCMT | Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Size | 2-1 | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Cutting Edge Length (L) | 0.254″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | M3P |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Unit | I |
Product Features
| Family Description | 80° rhombic positive flank inserts for medium machining conditions on steel. | FamilyName | CCMT-M3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0054
Name
Turning Indexable Inserts
FamilyName
CCMT-M3P
BrandName
Iscar
