CCMT 2-1D ID5
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Min D.O.C. | 0.004″ |
| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 0.118″ |

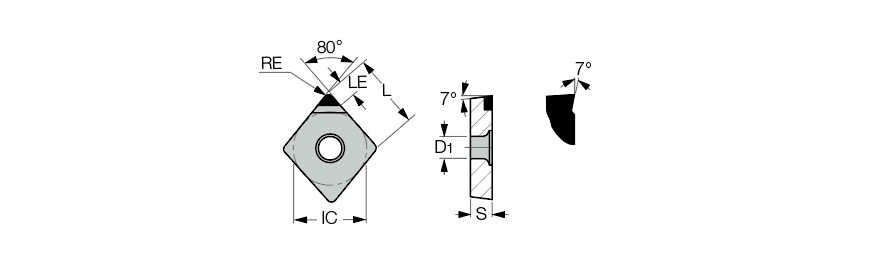

| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Size | 2-1 | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Cutting Edge Length (L) | 0.248″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | DW |
| Cutting Edge Material | PCD | Measurement Type | Inch |
| Grade | ID5 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Unit | I |
Product Features

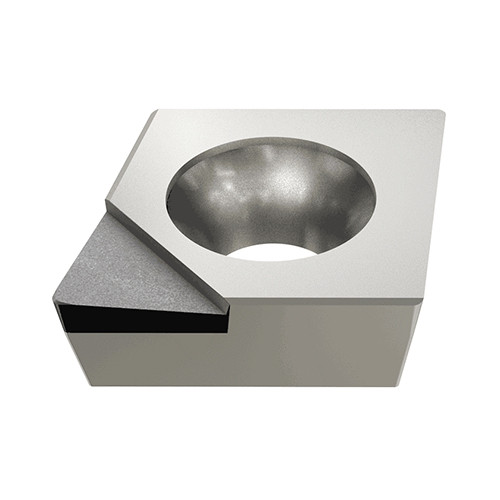

| Family Description | 80° rhombic inserts with PCD single-top corner, brazed tip and a positive rake angle. Used for aluminum finishing | FamilyName | CCMT (PCD) |
| Remarks | For dimensions and tolerances, Click on More Info | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0154
Name
Turning Indexable Inserts
FamilyName
CCMT (PCD)
BrandName
Iscar
