PRWL 50-55
84° lead toolholders with cartridges for under floor railroad wheel re-turning lathes (model 106 thread profile machine).
Price: Log in For Price

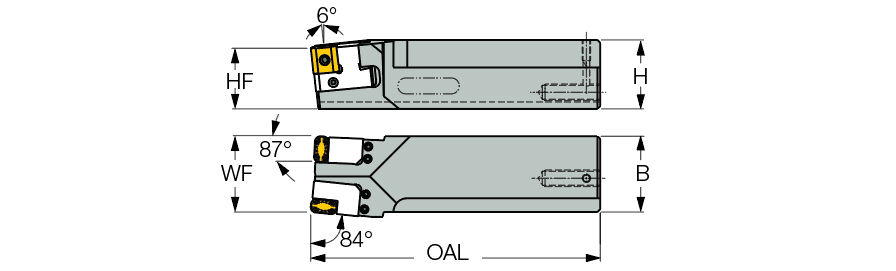

| Shank Height (H) | 50 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 55 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 210 mm | Body Material | Steel |
| Functional Width (WF) | 55 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Application | | Ext. Tangential 84° Approach | Ext. Tangential 93° Approach | | Unit | M |
Product Features
| Family Description | 84° lead toolholders with cartridges for under floor railroad wheel re-turning lathes (model 106 thread profile machine). | FamilyName | PRWR/L |
| Remarks | Cartridges should be ordered separately For tool assembly and cutting recommendations, click on More Info | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
3.5630
Name
General Indexable Turning Tools
FamilyName
PRWR/L
BrandName
Iscar
