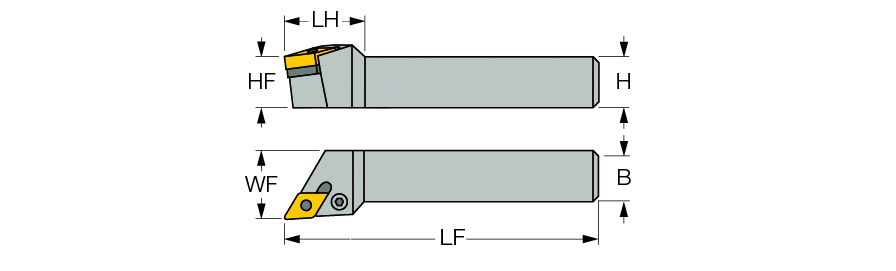

| Shank Height (H) | 32 mm | Application | | Ext. 55° Diamond 93° Approach | |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 34 mm | Body Material | Steel |
| Functional Width (WF) | 40 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | DNMG 1506 |
Product Features

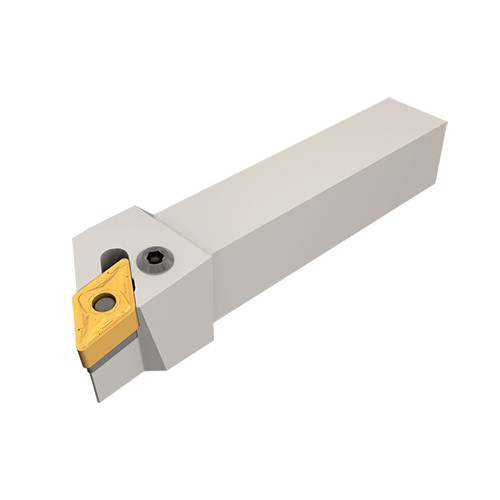

| Family Description | Lever lock tools carrying 55° negative rhombic inserts. | FamilyName | PDJNR/L |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
1.3280
Name
General Indexable Turning Tools
FamilyName
PDJNR/L
BrandName
Iscar
