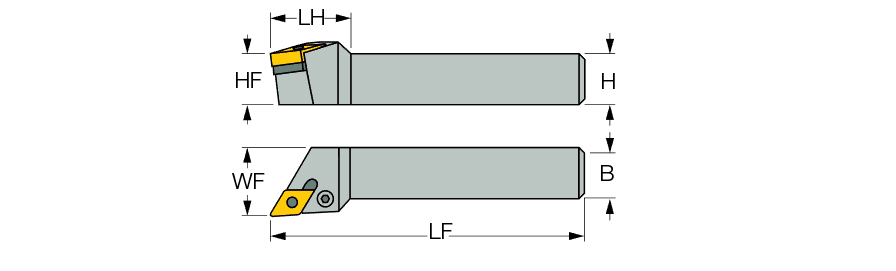

| Shank Height (H) | 1″ | Application | | Ext. 55° Diamond 93° Approach | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 1.4″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Unit | I |
| Master Insert Identification (MIID) | DNMG 44. |
Product Features
| Family Description | Lever lock tools carrying 55° negative rhombic inserts. | FamilyName | PDJNR/L |
| Remarks | For DN.. 44. inserts use TDN 422 seat (ordered separately) | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
1.7042
Name
General Indexable Turning Tools
FamilyName
PDJNR/L
BrandName
Iscar
