SDJCL 1616H-13-SL
Screw lock tools carrying 55° diamond inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.
Price: Log in For Price

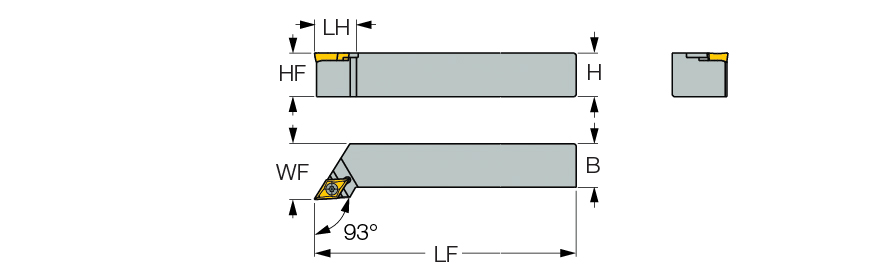

| Shank Height (H) | 16 mm | Application | | Ext. 55° Diamond 93° Approach | |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 100 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 24 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 11 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | DCMT 13T5-SL |
Product Features
| Family Description | Screw lock tools carrying 55° diamond inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications. | FamilyName | SDJCR/L-13-SL |
| Remarks | Insert clamping torque 3 Nxm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2210
Name
General Indexable Turning Tools
FamilyName
SDJCR/L-13-SL
BrandName
Iscar
