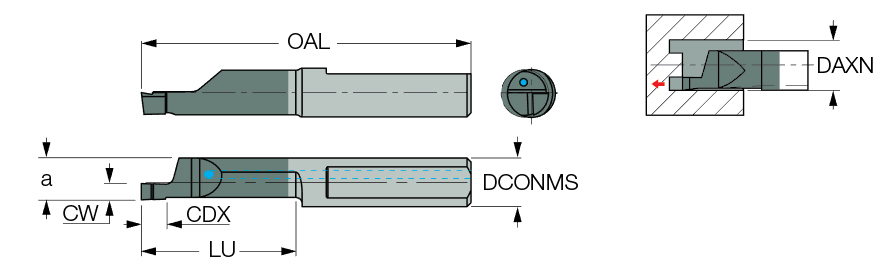

| Connection Diameter Machine Side (DCONMS) | 0.278″ | Front End Width (a) | 0.232″ |
| Functional Length (LF) | 1.614″ | Usable Length (LU) | 0.748″ |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | IC908 | Tool Type | Face Solid, Grooving &Turning grooving |
| Application | | Face Grooving | Int. Face Grooving | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | Inserts with internal coolant channel, for face grooving for Dmin .236″. | FamilyName | PICCO-010/610-N (Face Grooving) |
| Remarks | Only right-hand inserts are available as standard All inserts are with sharp corners Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0441
Name
Solid Boring Bars
FamilyName
PICCO-010/610-N (Face Grooving)
BrandName
Iscar
