PICCO R 050.5-20NC IC908
PICCO-JETCUT inserts with chipformers and inner coolant channel, for internal boring and profiling.
Price: Log in For Price

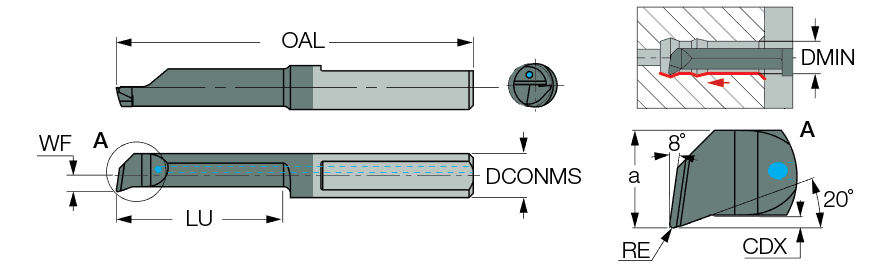

| Connection Diameter Machine Side (DCONMS) | 0.199″ | Corner Radius (RE) | 0.006″ |
| Minimum Bore Diameter (DMIN) | 0.197″ | Cutting Depth Maximum (CDX) | 0.02″ |
| Functional Length (LF) | 1.614″ | Functional Width (WF) | 0.075″ |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 0.748″ |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Axial Turning | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.173″ | Unit | I |
Product Features
| Family Description | PICCO-JETCUT inserts with chipformers and inner coolant channel, for internal boring and profiling. | FamilyName | PICCO R/L 050-NC (Turning, with Chipbreaker) |
| Remarks | All left-hand inserts on request Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.3263
Name
Solid Boring Bars
FamilyName
PICCO R/L 050-NC (Turning, with Chipbreaker)
BrandName
Iscar
