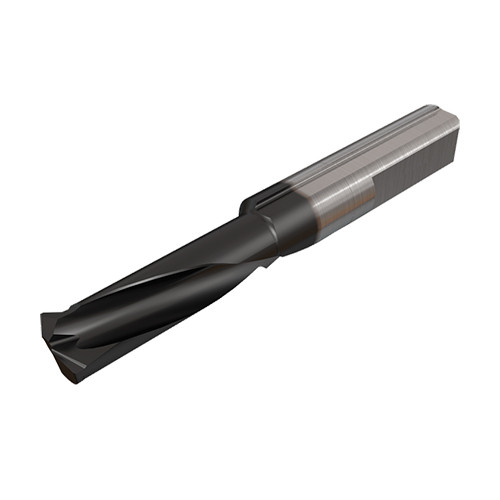

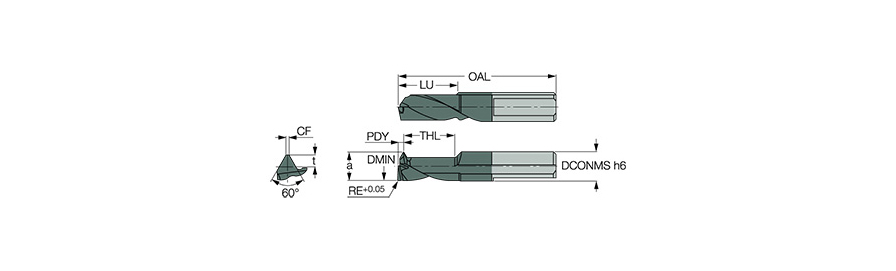

PICCO R-MFT60 6-6 L12 IC908
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Usable Length (LU) | 0.4724″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Central Flat (CF) | 0.002″ |
| Functional Length (LF) | 1.339″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid Carbide Turn Tool |
| Grade | IC908 | Measurement Type | Inch |
| Application | | Drill Face Ext Int Turn Thread | | Thread Standard | THFT | |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Front End Width (a) | 0.232″ | Unit | I |
| Corner Radius (RE) | 0.0039″ |
Product Features
| Family Description | Solid Carbide Tools for Drilling, Facing, Internal / External Turning and Threading on Swiss and Small CNC Machines. Part of the PASSPORT system | FamilyName | PICCO-MFT |
| Remarks | Applications: Drilling; face turning; internal chamfering; internal turning/boring; internal profiling; external chamfering; external turning; internal and external 60° threading (right- and left-hand) DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0309
Name
Solid Boring Bars
FamilyName
PICCO-MFT
BrandName
Iscar
