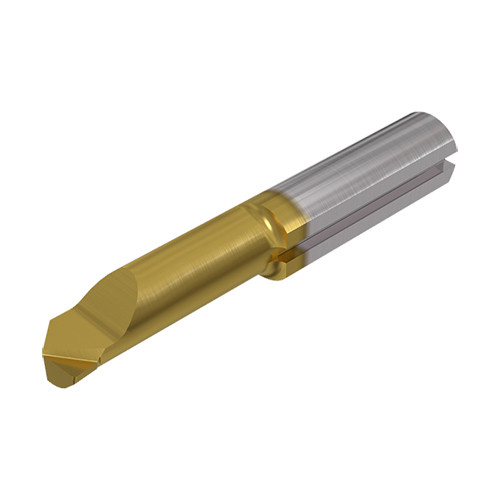

PICCO R 090.5-20 IC228
Inserts for internal turning and profiling, Dmin .011″.
Price: Log in For Price

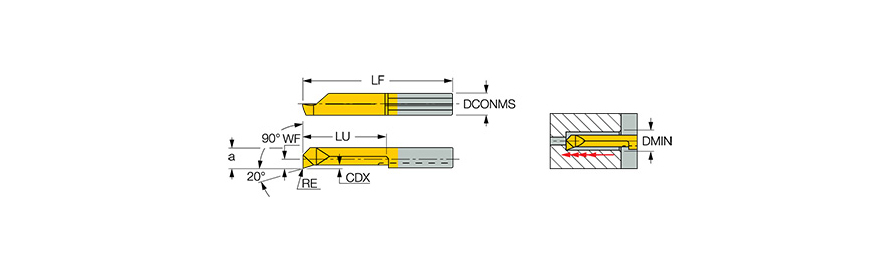

| Connection Diameter Machine Side (DCONMS) | 0.197″ | Corner Radius (RE) | 0.006″ |
| Minimum Bore Diameter (DMIN) | 0.197″ | Cutting Depth Maximum (CDX) | 0.02″ |
| Functional Length (LF) | 1.378″ | Functional Width (WF) | 0.075″ |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 0.748″ |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC228 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.173″ | Unit | I |
Product Features
| Family Description | Inserts for internal turning and profiling, Dmin .011″. | BrandName | Iscar |
| COO | Israel | ||
| FamilyName | PICCO R/L 090 |
Shipping Info
Weight per item
0.0243
Name
Solid Boring Bars
FamilyName
PICCO R/L 090
BrandName
Iscar
