RM-BN6-0.6250-H7SA IC908

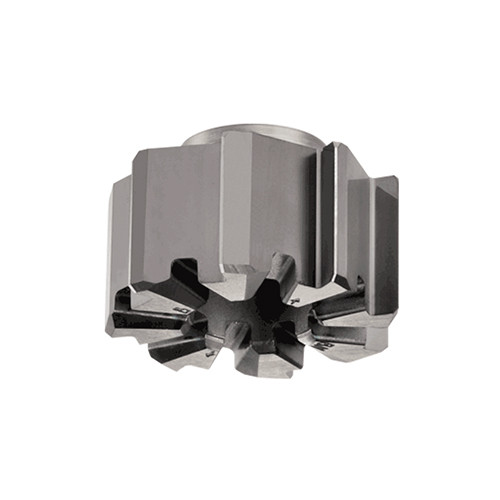

Interchangeable straight flute solid carbide reaming heads (shell reamers), with a quick change bayonet mechanism for H7 hole tolerance high speed reaming.
Price: Log in For Price

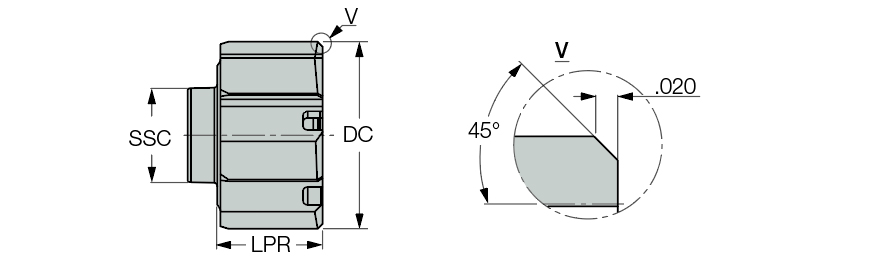

| Cutting Diameter (DC) | 5/8″ | Coating | TiAlN |
| Cutting Edge Length (L) | 0.374″ | Tool Type | Shell Reamers / BAYO Heads |
| Insert Seat Size Code (SSC) | BN6 | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Interchangeable straight flute solid carbide reaming heads (shell reamers), with a quick change bayonet mechanism for H7 hole tolerance high speed reaming. | COO | Israel |

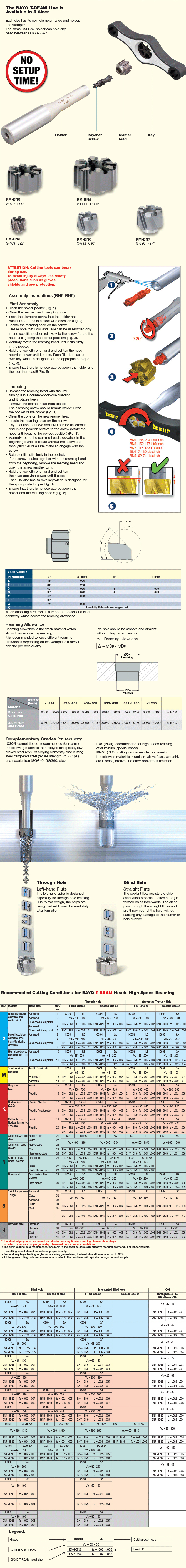

| Remarks | For user guide, click on More Info |
Shipping Info
Weight per item
0.0705
