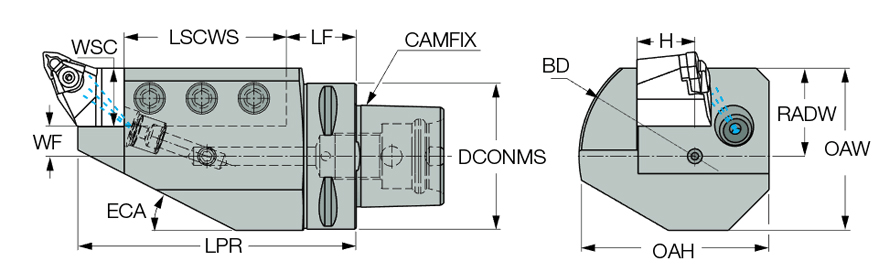

| Protruding Length (LPR) | 100 mm | Shank Size (SS) | 63 |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Clamping Length Workpiece Side (LSCWS) | 63.5 mm | Measurement Type | Metric |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Shank Height (H) | 20 mm | Overall Height (OAH) | 78 mm |
| Body Diameter (BD) | 90 mm | Overall Length (OAL) | 138 mm |
| Body Length (LB) | 26.5 mm | Unit | M |
| Functional Width (WF) | 0 mm | Overall Width (OAW) | 59 mm |
Product Features

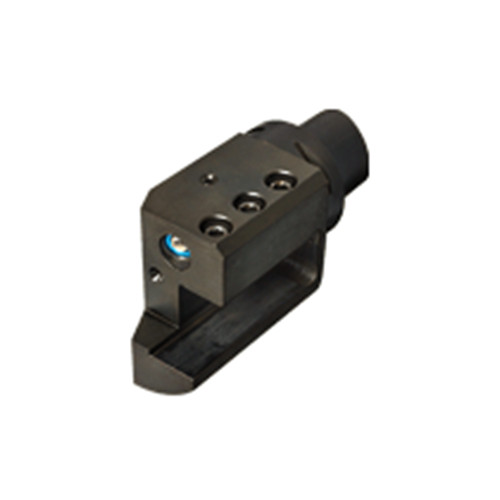

| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools. | FamilyName | C#-ASHR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
2.6670
Name
Adapters
FamilyName
C#-ASHR/L
BrandName
Iscar
