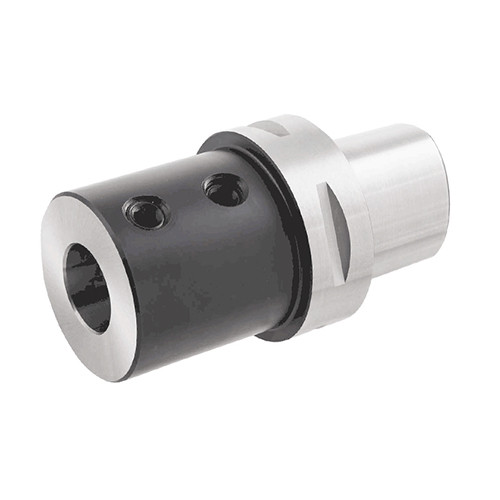

C4 ADI 16
Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars.
Price: Log in For Price

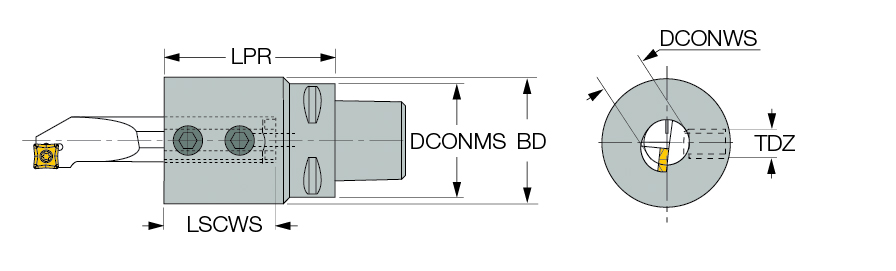

| Protruding Length (LPR) | 50 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Body Material | Steel |
| Body Diameter (BD) | 36 mm | Overall Length (OAL) | 74 mm |
| Shank Size (SS) | 40 | Unit | M |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars. | FamilyName | C#-ADI |
| Remarks | Use the tools with AD suffix Regular tools should be shortened | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4640
Name
Adapters
FamilyName
C#-ADI
BrandName
Iscar
