MTE D30.4/D1.2-3-MMT15-21
Indexable threading endmills with a MULTI-MASTER shank connection and coolant holes.
Price: Log in For Price

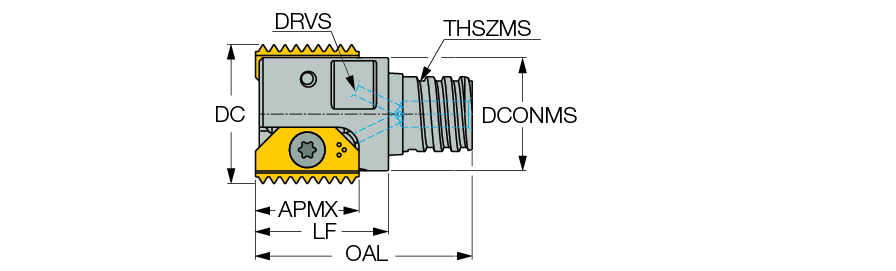

| Cutting Diameter (DC) | 1.197″ | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 0.941″ | Tool Type | Indexable thread mills |
| Depth of Cut Maximum (APMX) | 0.8268″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.008″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Count (NOF) | 3 | Thread Type (TTP_DF2) | INT |
| Body Material | Steel | Unit | I |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Indexable threading endmills with a MULTI-MASTER shank connection and coolant holes. | COO | Israel |
| Remarks | Tool cutting diameter should not exceed 2/3 of thread bore diameter For adaptation click on More Info. |
Shipping Info
Weight per item
0.4718
