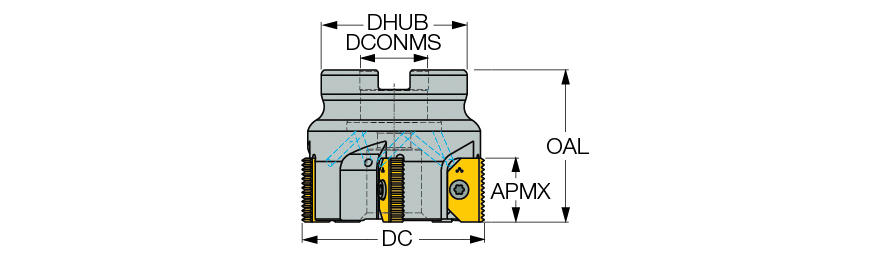

| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 1.181″ | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Unit | I |
Product Features
| Family Description | Thread milling, multi-insert shell mills | COO | Israel |
| Remarks | For Adaptation Click on More Info. |
Shipping Info
Weight per item
4.6297
