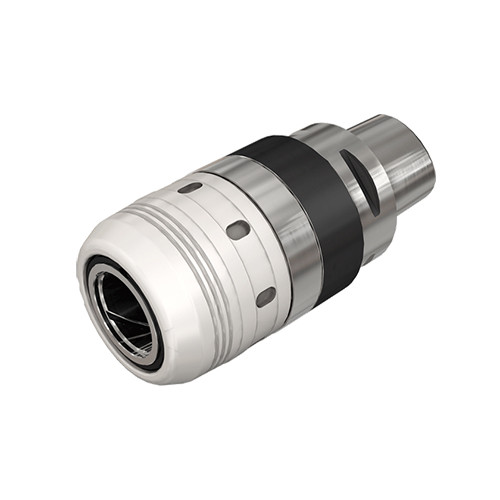

C6 MAXIN3/4X3.74
MAXIN power chucks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.
Price: Log in For Price

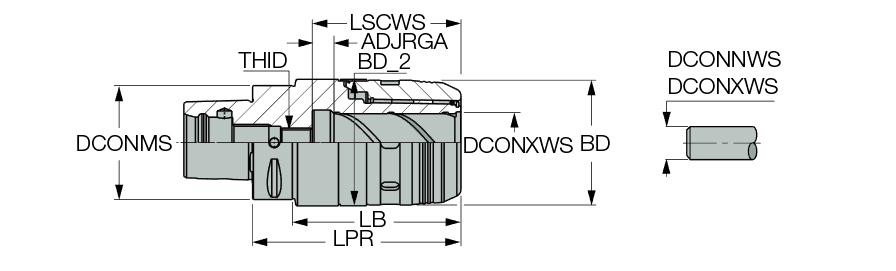

| Body Diameter (BD) | 2″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
| Protruding Length (LPR) | 3.78″ | Measurement Type | Inch |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 3/4″ | Body Material | Steel |
| Shank Size (SS) | 63 | Unit | I |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | MAXIN power chucks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. | FamilyName | C#-MAXIN |
| Remarks | Can be used for carbide and HSS tools. The adjustment screw has an internal coolant hole Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.9286
Name
Milling Chucks
FamilyName
C#-MAXIN
BrandName
Iscar
