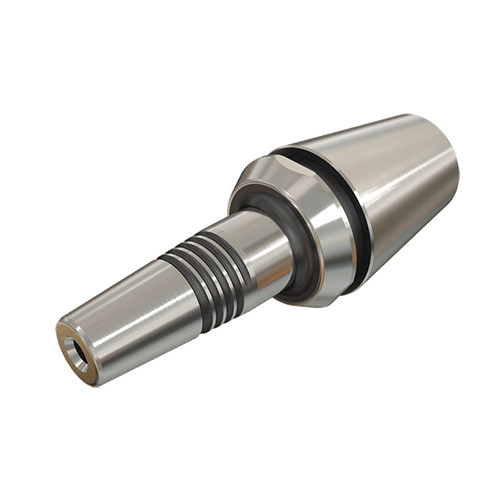

ER32 SRK 1/8X3.500
Thermal shrinking chucks with integral ER collet, for solidcarbide tools only.
Price: Log in For Price

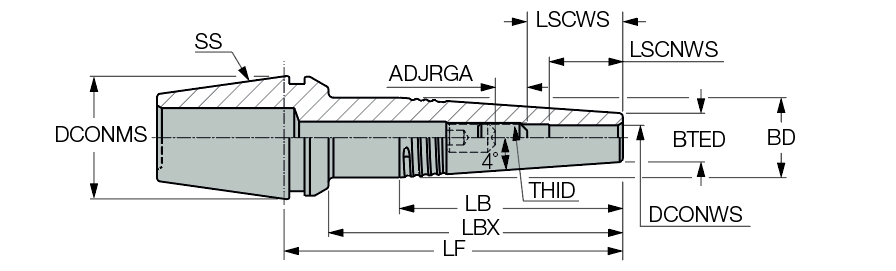

| Connection Diameter Machine Side (DCONMS) | 32″ | Clamping Length Workpiece Side (LSCWS) | 0.63″ |
| Connection Diameter Workpiece Side (DCONWS) | 1/8″ | Measurement Type | Inch |
| Shank Size (SS) | ER32 | Tool Type | Accessories and Devices |
| Body Length (LB) | 3″ | Body Material | Steel |
| Body Length Maximum (LBX) | 3-1/2″ | Unit | I |
| Overall Length (OAL) | 5.075″ |
Product Features
| Family Description | Thermal shrinking chucks with integral ER collet, for solidcarbide tools only. | FamilyName | ER-SRK |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6239
Name
Shrink Fit Holders
FamilyName
ER-SRK
BrandName
Iscar
