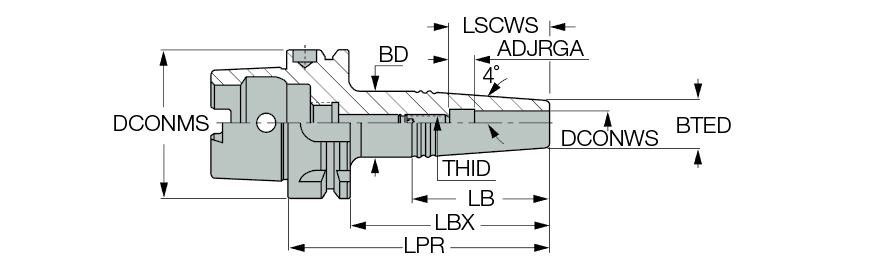

| Connection Diameter Machine Side (DCONMS) | 63 mm | Overall Length (OAL) | 143 mm |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Clamping Length Workpiece Side (LSCWS) | 43 mm |
| Shank Size (SS) | 63 | Measurement Type | Metric |
| Body Length (LB) | 72 mm | Tool Type | HSK |
| Body Diameter (BD) | 30 mm | Body Material | Steel |
| Body Taper End Diameter (BTED) | 20 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 111 mm | Unit | M |
| Body Length Maximum (LBX) | 85 mm |
Product Features

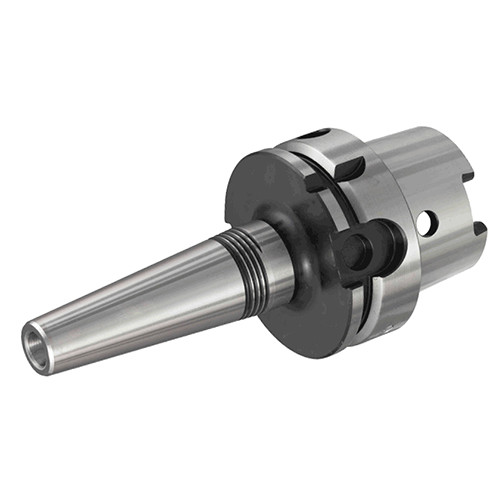

| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only. | FamilyName | HSK A-SRK |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). To be used for carbide tools only. For shank dimensions, Click on More Info. Remove preset screw for coolant through. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0210
Name
Shrink Fit Holders
FamilyName
HSK A-SRK
BrandName
Iscar
